MT Gear Shift Lever: Disassembly

Remove the lock wires.

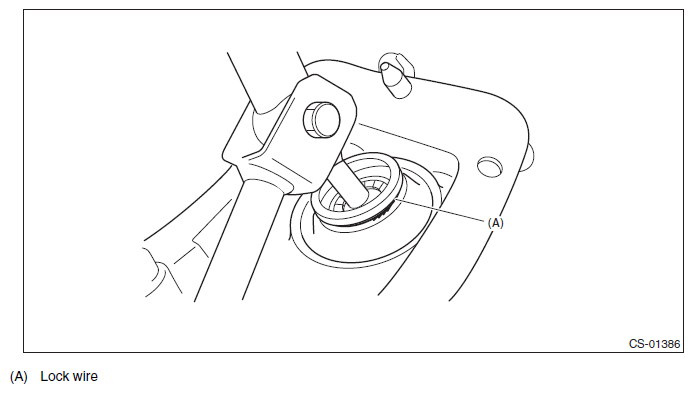

Fig 1: Identifying Lock Wires
Courtesy of SUBARU OF AMERICA, INC.
Remove the rod from gear shift lever.

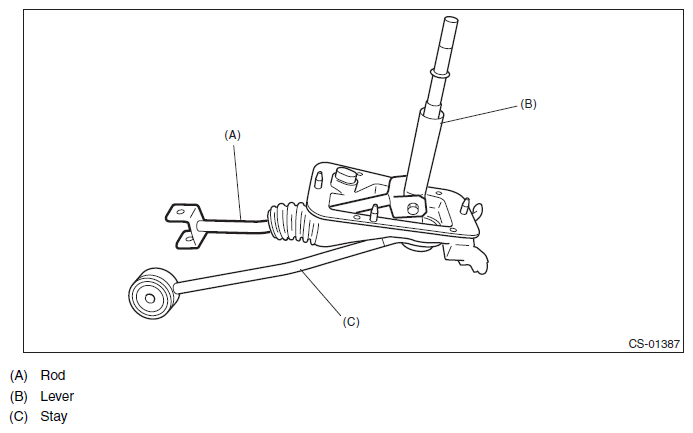

Fig 2: Identifying Rod, Lever And Stay
Courtesy of SUBARU OF AMERICA, INC.
Separate the rod and inner boot.
Remove the snap ring from the stay.

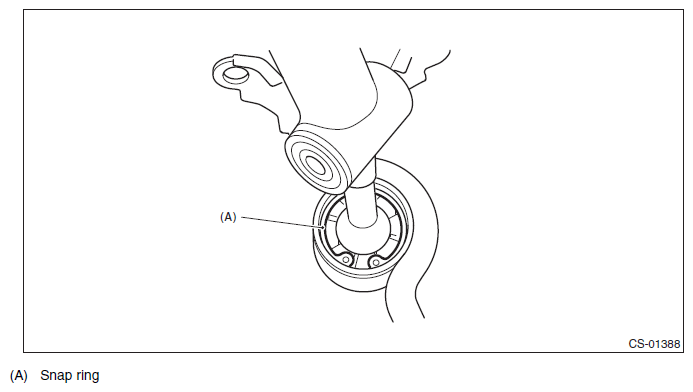

Fig 3: Identifying Stay Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Separate the gear shift lever and the stay.

Fig 4: Separating Gear Shift Lever And Stay
Courtesy of SUBARU OF AMERICA, INC.
Remove the boot and bushing from the gear shift lever.

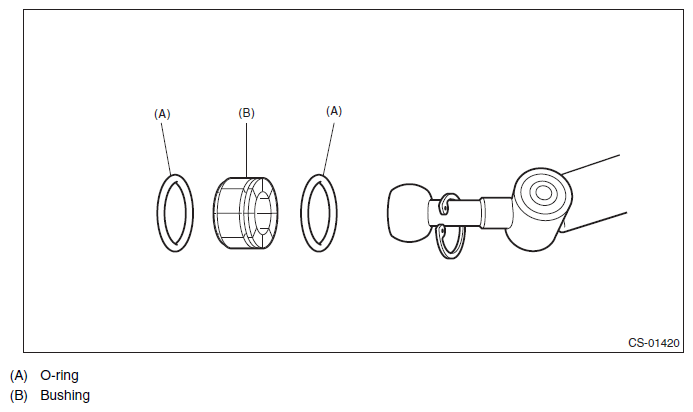

Fig 5: Identifying Boot, Bushing, Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove the spring pin, and then remove the bushing and snap ring.

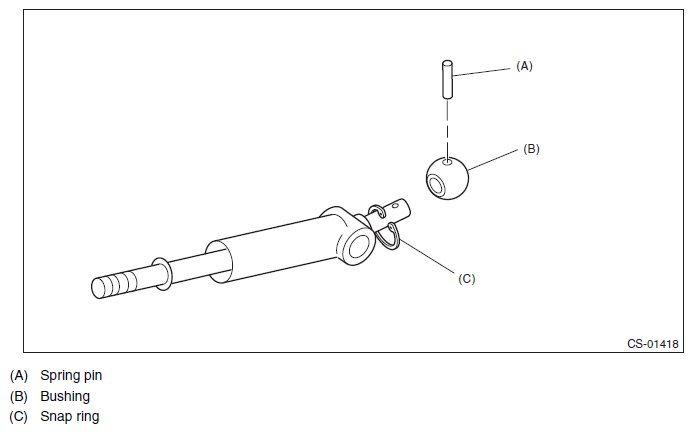

Fig 6: Identifying Spring Pin, Bushing, Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the boss from the joint.

Fig 7: Identifying Boss And Joint
Courtesy of SUBARU OF AMERICA, INC.
Remove the bushing and spacer from the boss.

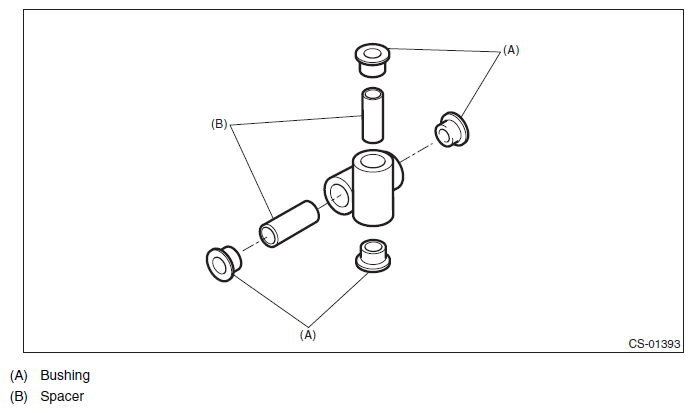

Fig 8: Identifying Bushing And Spacer
Courtesy of SUBARU OF AMERICA, INC.
Remove the bushing and cushion rubber from the stay.

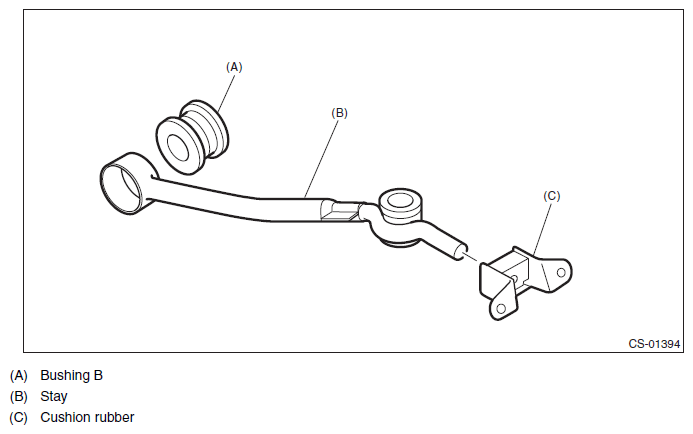

Fig 9: Identifying Bushing, Cushion Rubber And Stay
