MT Gear Shift Lever: Removal

Disconnect the ground cable from battery.
Remove the console box. < Ref. to REMOVAL , Console Box. >

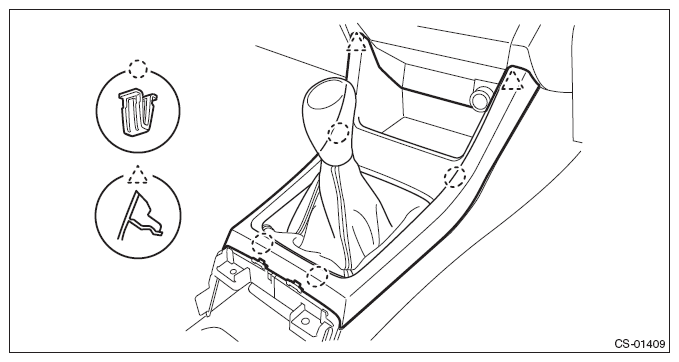

Remove the gear shift knob and remove the cover - shift lever.

Fig 1: Identifying Gear Shift Knob And Cover Claw
Courtesy of SUBARU OF AMERICA, INC.
Remove the panel center LWR LH and RH. < Ref. to REMOVAL , Console Box. >
Remove the clamp.

Fig 2: Identifying Panel Center LWR Clamp (LH And RH)
Courtesy of SUBARU OF AMERICA, INC.
Remove the boot and insulator assembly.

Fig 3: Identifying Boot And Insulator Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness clamp from the plate COMPL.

Fig 4: Locating Plate COMPL Harness Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate COMPL from the vehicle body.

Fig 5: Locating Vehicle Body Plate COMPL Bolt
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the center exhaust pipe. < Ref. to REMOVAL , Center Exhaust Pipe. >
Remove the center exhaust cover.

Fig 6: Identifying Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.

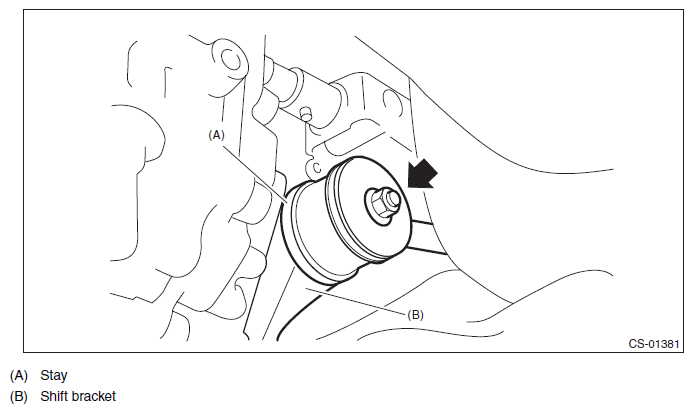

Remove the stay from the shift bracket.

Fig 7: Locating Stay And Shift Bracket
Courtesy of SUBARU OF AMERICA, INC.

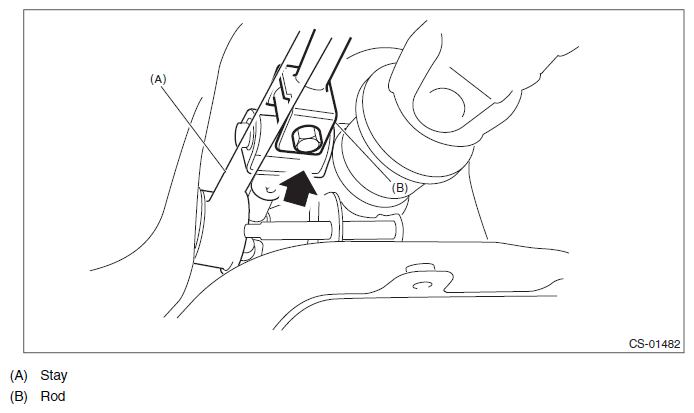

Remove the rod from joint.

Fig 8: Locating Joint Rod
Courtesy of SUBARU OF AMERICA, INC.

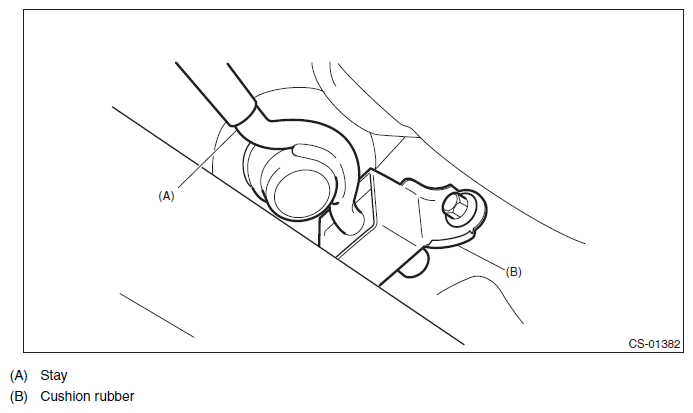

Remove the cushion rubber from the vehicle body.

Fig 9: Identifying Stay And Cushion Rubber
Courtesy of SUBARU OF AMERICA, INC.

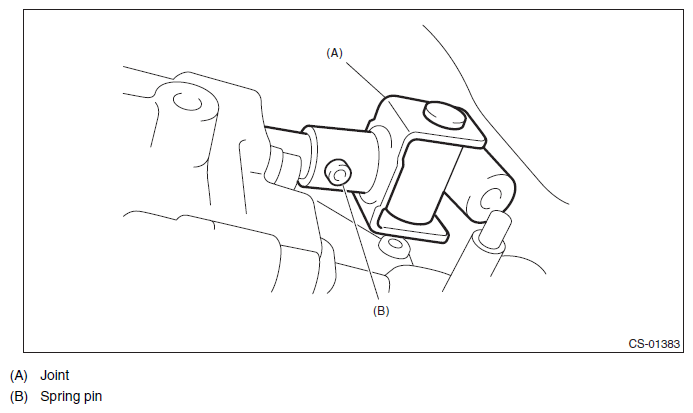

Extract the spring pin and remove the joint.

Fig 10: Identifying Spring Pin And Joint
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.

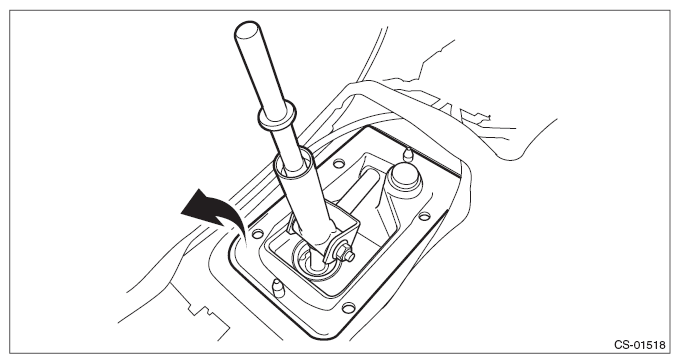

Remove the gear shift lever.

Fig 11: Identifying Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
