Select Cable: Installation

Position the select cable as shown in the figure, and install it to the plate assembly.
CAUTION:
- If the cable is installed in the wrong direction, loosen the bracket bolts, and then reinstall the cable in the correct direction.
- Do not adjust the cable end direction by turning it forcibly to prevent the boot from being twisted.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

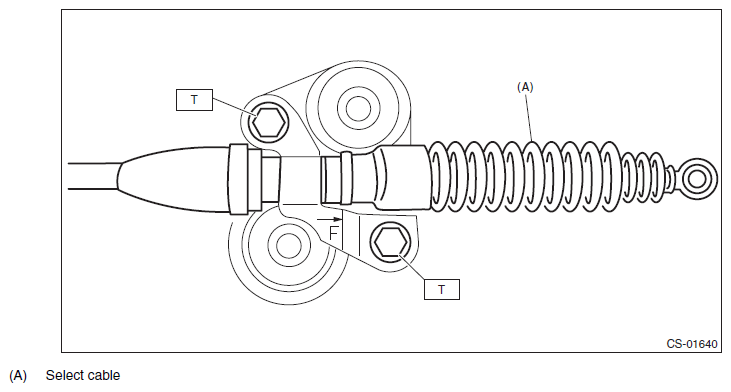

Fig 1: Identifying Select Cable
Courtesy of SUBARU OF AMERICA, INC.
Install the select cable to the shifter arm.
Install the plate assembly to transmission.
Tightening torque:

T: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

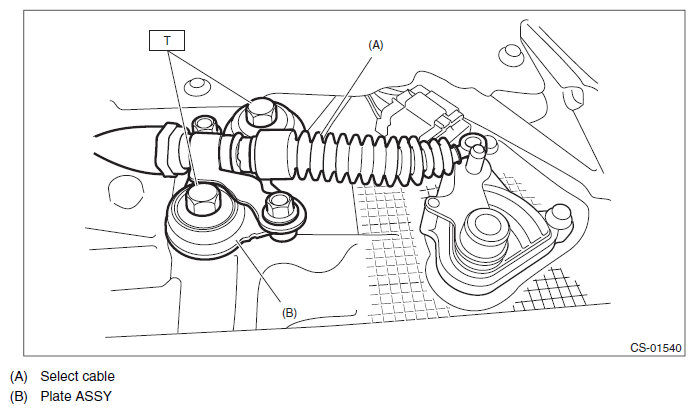

Fig 2: Identifying Select Cable And Plate Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap pin to the shifter arm.

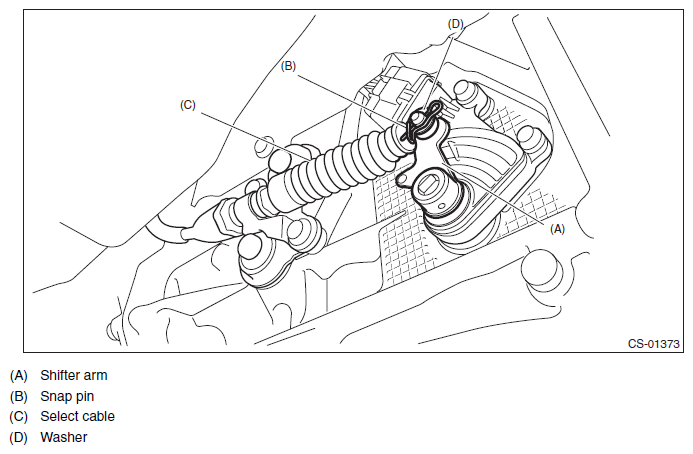

Fig 3: Identifying Washer, Snap Pin And Shifter Arm
Courtesy of SUBARU OF AMERICA, INC.
Install new clamp paying attention to the installing direction.

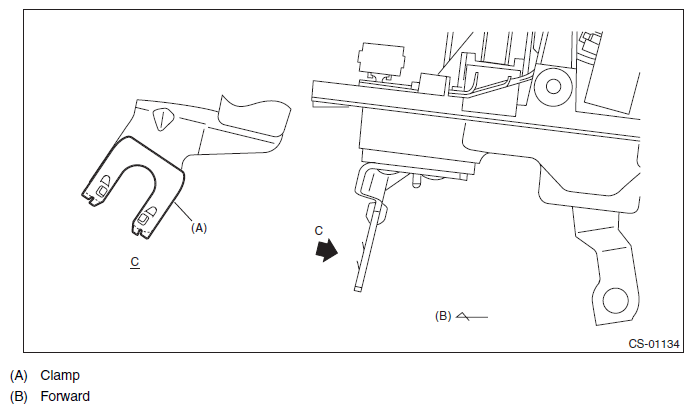

Fig 4: Installing Clamp
Courtesy of SUBARU OF AMERICA, INC.
Insert the tip of inner cable into connector hole of select lever, and fix the cable to bracket.

Fig 5: Inserting Inner Cable Tip Into Select Lever Connector Hole
Courtesy of SUBARU OF AMERICA, INC.
Shift the select lever to the "N" range, and then adjust the select cable position. < Ref. to ADJUSTMENT , Select Cable. >
Install the center exhaust cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

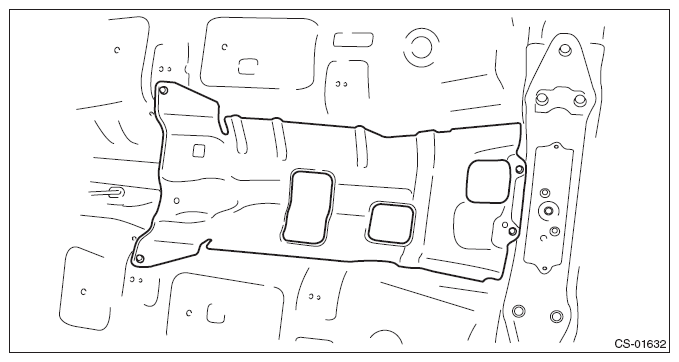

Fig 6: Identifying Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust pipe. < Ref. to INSTALLATION , Center Exhaust Pipe. >
Lower the vehicle.
Connect the battery ground terminal. < Ref. to BATTERY , NOTE, Note. >
