MT Gear Shift Cable: Removal

Disconnect the ground cable from battery.
Lift up the vehicle.
Remove the transmission under cover.

Fig 1: Identifying Transmission Under Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the center exhaust pipe. Ref. to EXHAUST(H4DO) > Center Exhaust Pipe > REMOVAL .
Remove the center exhaust cover.

Fig 2: Identifying Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.

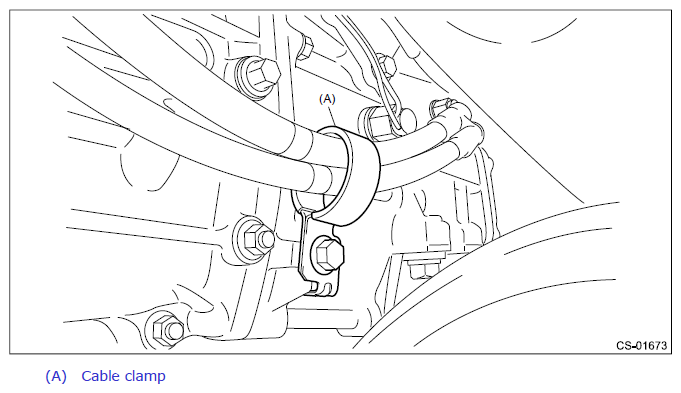

Remove the cable clamp and take out the MT gear shift cable from the clamp.

Fig 3: Identifying MT Gear Shift Cable Clamp
Courtesy of SUBARU OF AMERICA, INC.

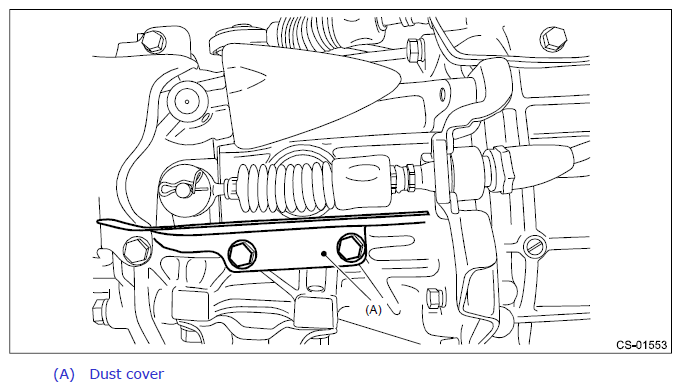

Remove the dust cover from transmission body.

Fig 4: Identifying Dust Cover Of Transmission Body
Courtesy of SUBARU OF AMERICA, INC.

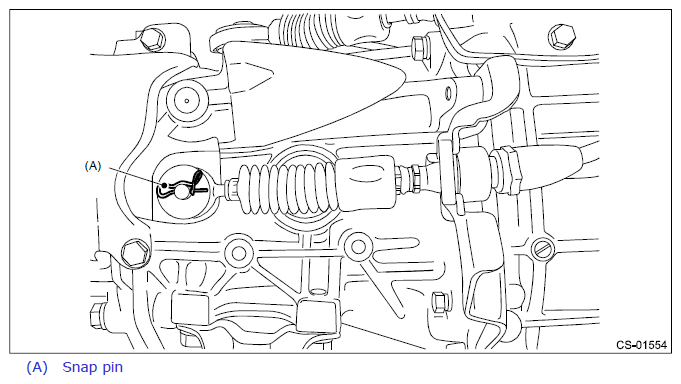

Remove the snap pin from the shift lever COMPL.

Fig 5: Identifying Snap Pin Of Shift Lever COMPL
Courtesy of SUBARU OF AMERICA, INC.

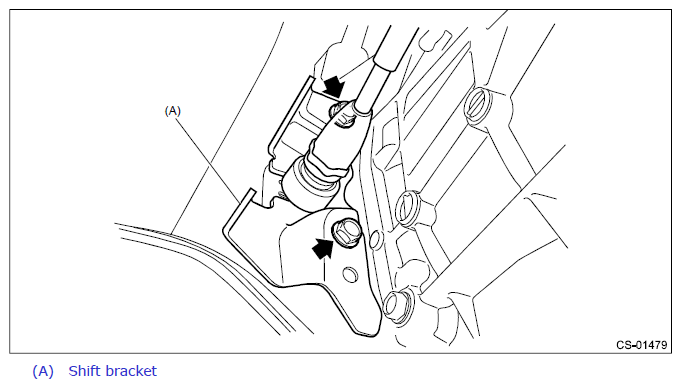

Remove the bolts holding the shift bracket.

Fig 6: Locating Shift Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.

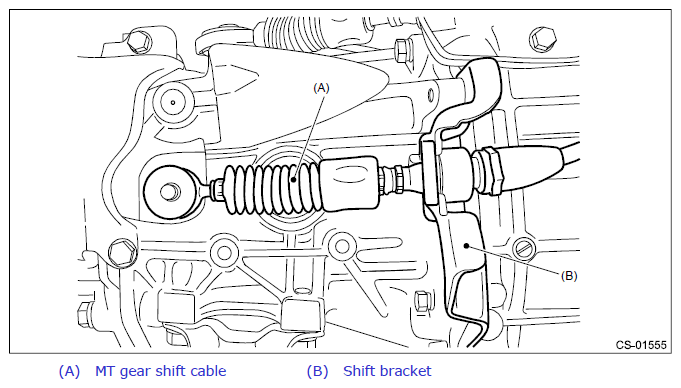

Remove the shift bracket and MT gear shift cable as a single unit from the transmission body.

Fig 7: Identifying MT Gear Shift Cable And Shift Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the cable cover plate.

Fig 8: Locating Cable Cover Plate Stud Bolts
Courtesy of SUBARU OF AMERICA, INC.

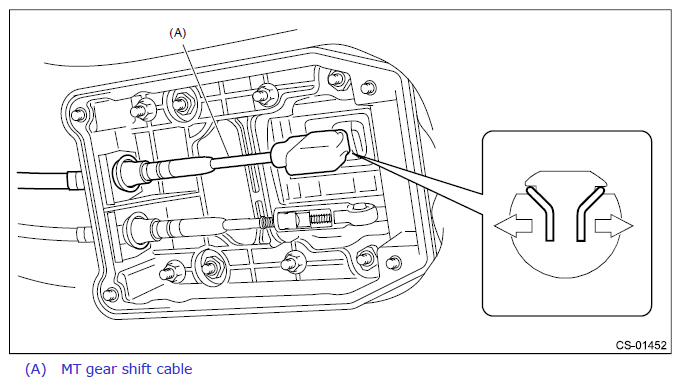

Disconnect the MT gear shift cable.
CAUTION: Be careful not to deform the cable inner.

NOTE: Pull out down the MT gear shift cable to spread the spring.

Fig 9: Pulling Out MT Gear Shift Cable
Courtesy of SUBARU OF AMERICA, INC.

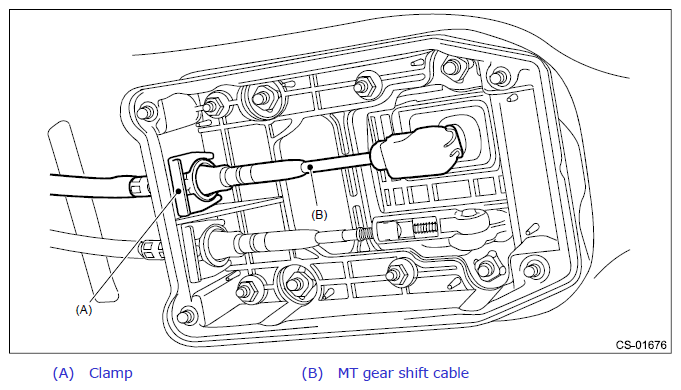

Remove the clamp which holds the MT gear shift cable.

Fig 10: Identifying MT Gear Shift Cable And Clamp
Courtesy of SUBARU OF AMERICA, INC.
Pull out the MT gear shift cable from cable cover assembly.

Fig 11: Identifying MT Gear Shift Cable

Courtesy of SUBARU OF AMERICA, INC.

CAUTION:

Do not bend MT gear shift cable at a sharp angle.
Do not twist the cable inner excessively.
