Select Cable: Installation

Position the select cable as shown in the figure, and install it to the plate assembly.
CAUTION:
- If the cable is installed in the wrong direction, loosen the bracket bolts, and then reinstall the cable in the correct direction.
- Do not forcibly turn the cable (wire side) to align the direction correctly.
Tightening torque:

T: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

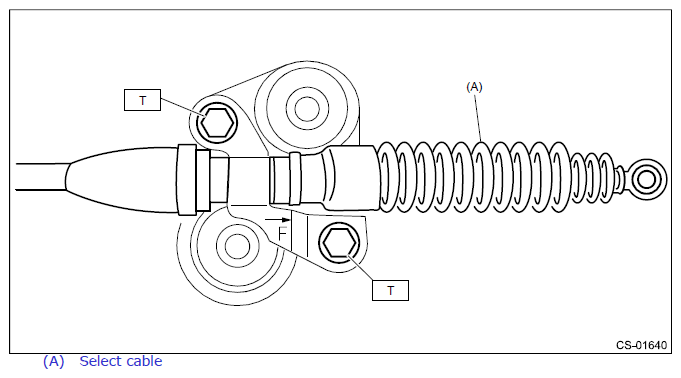

Fig 1: Identifying Select Cable And Bolts With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Install the select cable to the shifter arm.
Install the plate assembly to transmission.
Tightening torque:

T: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

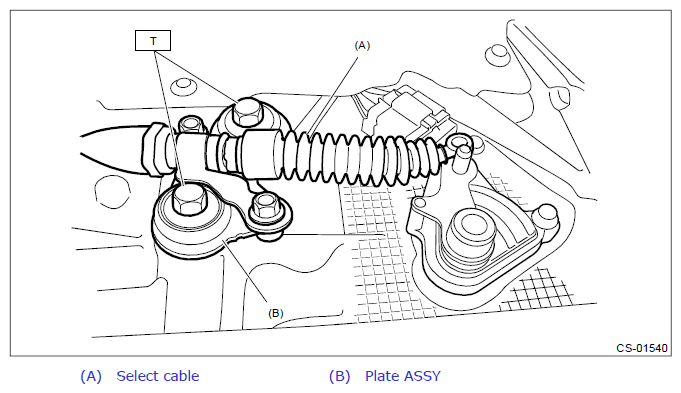

Fig 2: Identifying Select Cable Or Plate Assembly And Bolts With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap pin to the shifter arm.

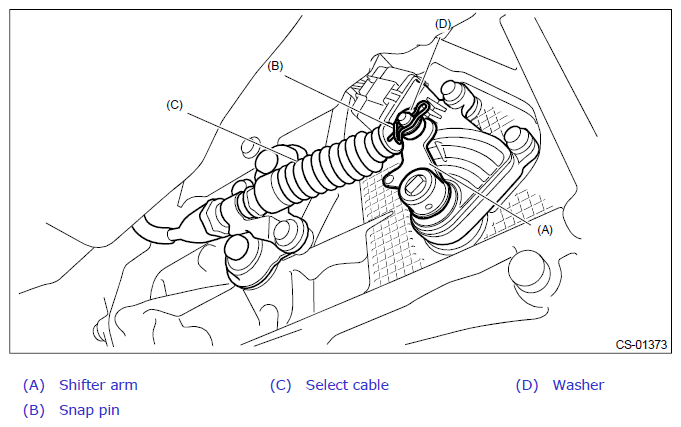

Fig 3: Identifying Shifter Arm, Select Cable, Washer And Snap Pin
Courtesy of SUBARU OF AMERICA, INC.
Install new clamp paying attention to the installing direction.

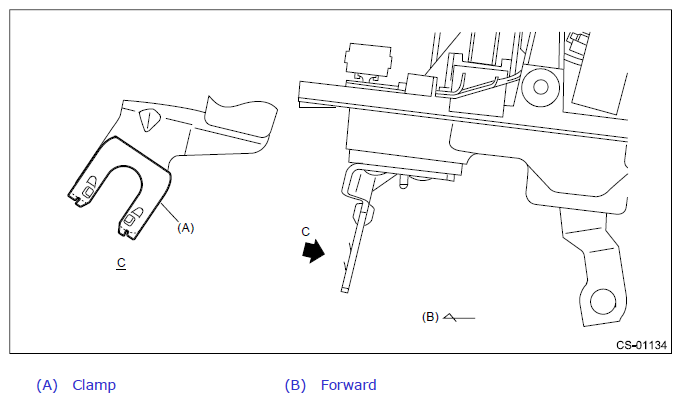

Fig 4: Identifying Clamp Installation Direction
Courtesy of SUBARU OF AMERICA, INC.
Insert the tip of inner cable into connector hole of select lever, and fix the cable to bracket.

Fig 5: Inserting Tip Of Inner Cable Into Connector Hole Of Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Shift the select lever to the "N" range, and then adjust the select cable position. Ref. to CONTROL SYSTEMS > Select Cable > ADJUSTMENT .
Install the center exhaust cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 6: Locating Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust pipe. (Non-turbo model) Ref. to EXHAUST(H4DO) > Center Exhaust Pipe > INSTALLATION .
Install the center exhaust pipe (rear). (Turbo model) Ref. to EXHAUST(H4DOTC) > Center Exhaust Pipe > INSTALLATION .
Lower the vehicle.
Connect the battery ground terminal.
