Engine Wiring Harness: Installation

Set the engine wiring harness to the engine, and connect the connector.
NOTE:
- If the clip is damaged, replace it with a new part.
- Before replacing the clip, put an alignment mark (a) on both engine wiring harness and clip to remove the clip, and then align to the alignment mark (a) to attach a new clip to the engine wiring harness.
Fig 1: Identifying Engine Wiring Harness Alignment Mark
Courtesy of SUBARU OF AMERICA, INC.

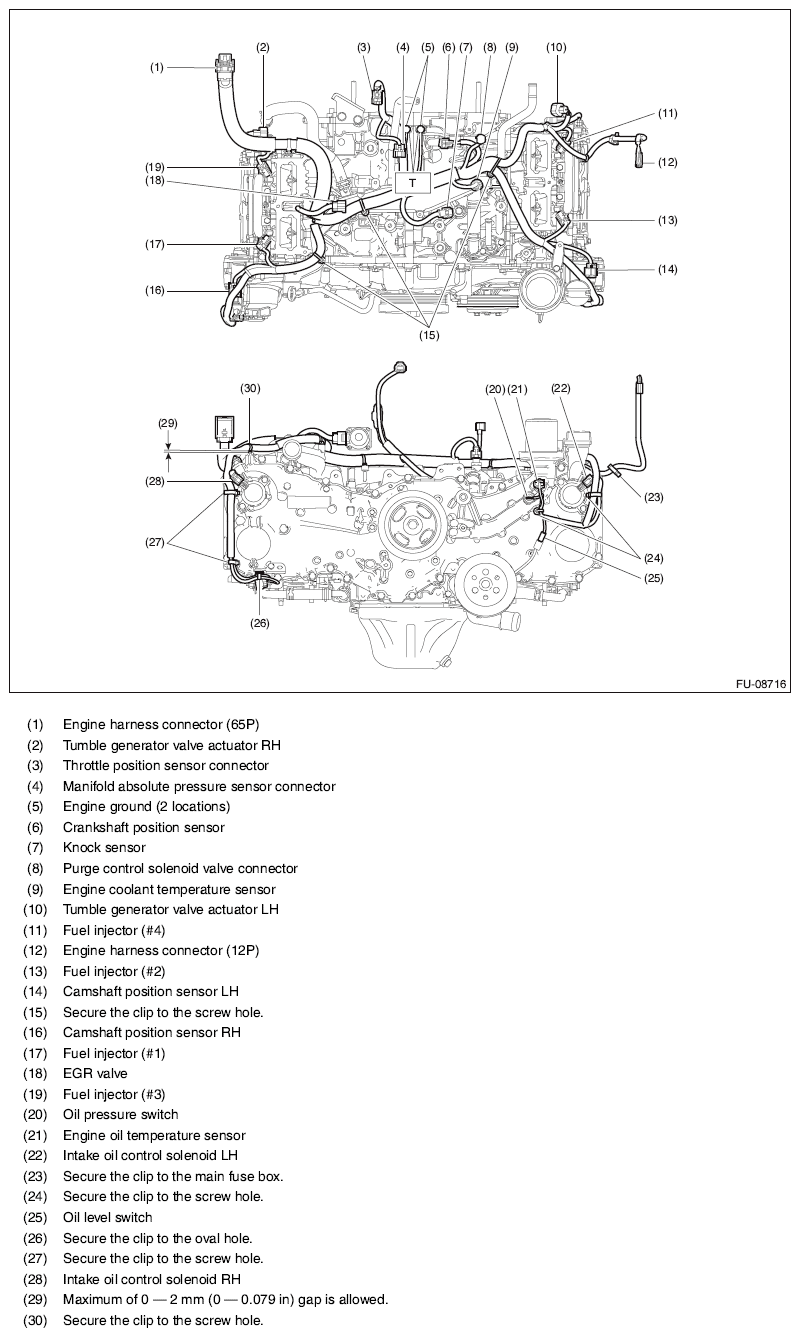

- Structural diagram 1

  Fig 2: Engine Wiring Harness Structural Diagram 1
  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T: 19 (1.9, 14.0)

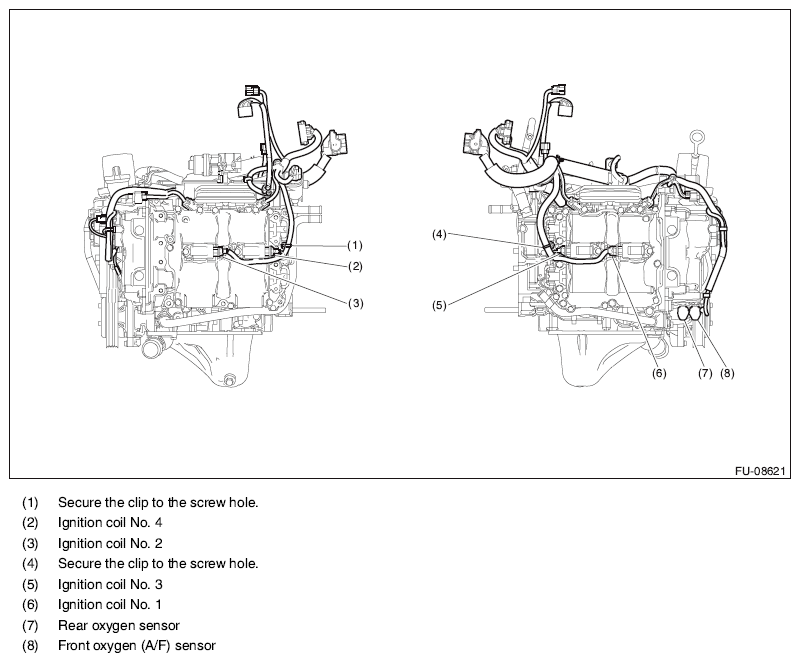

- Structural diagram 2

  Fig 3: Engine Wiring Harness Structural Diagram 2
  Courtesy of SUBARU OF AMERICA, INC.
Install the intake manifold assembly. < Ref. to INSTALLATION , Intake Manifold Assembly. >
Connect the ground terminal to battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
