Engine Wiring Harness: Removal
- Disconnect the ground terminal from battery sensor. < Ref. to
BATTERY
, NOTE, Repair Contents. >
- Remove the intake manifold assembly. < Ref. to
REMOVAL , Intake Manifold Assembly. >
- Disconnect each connector to remove the engine wiring harness.

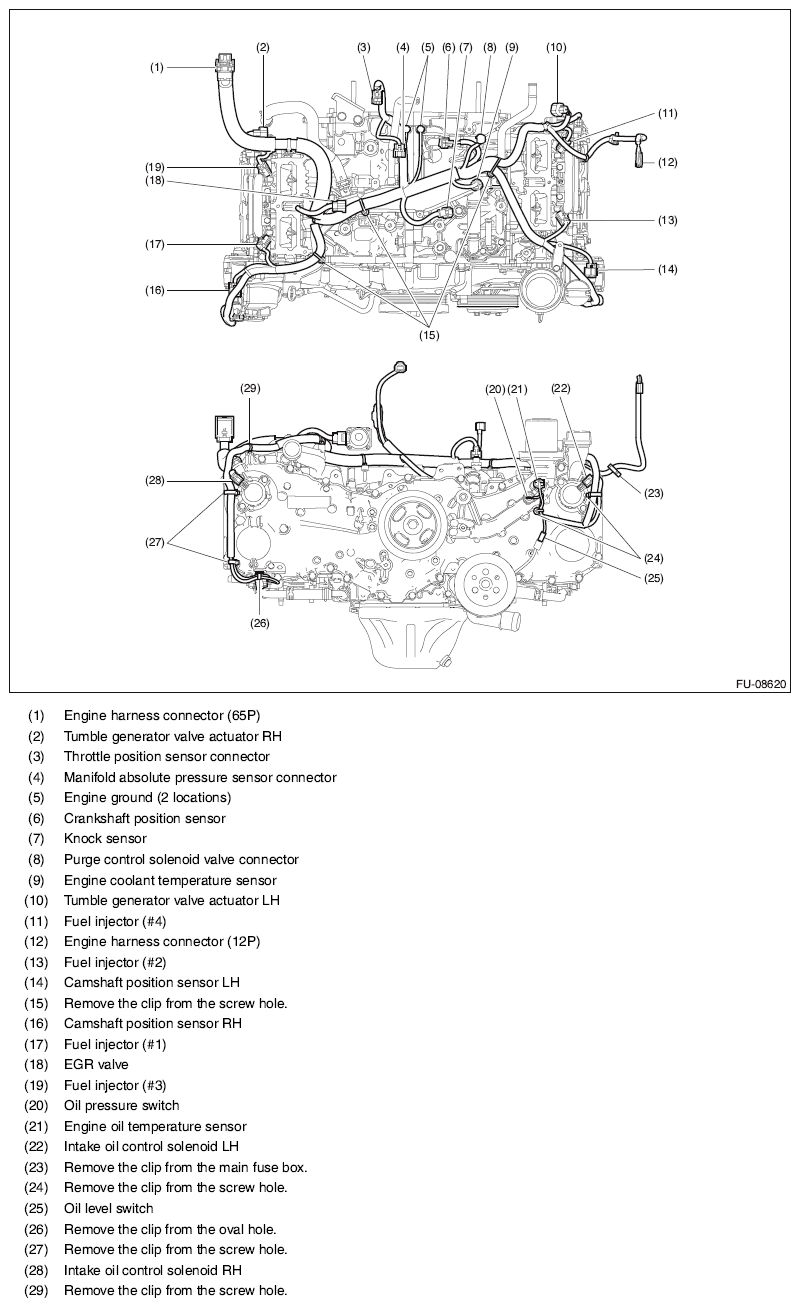

- Structural diagram 1
Courtesy of SUBARU OF AMERICA, INC.

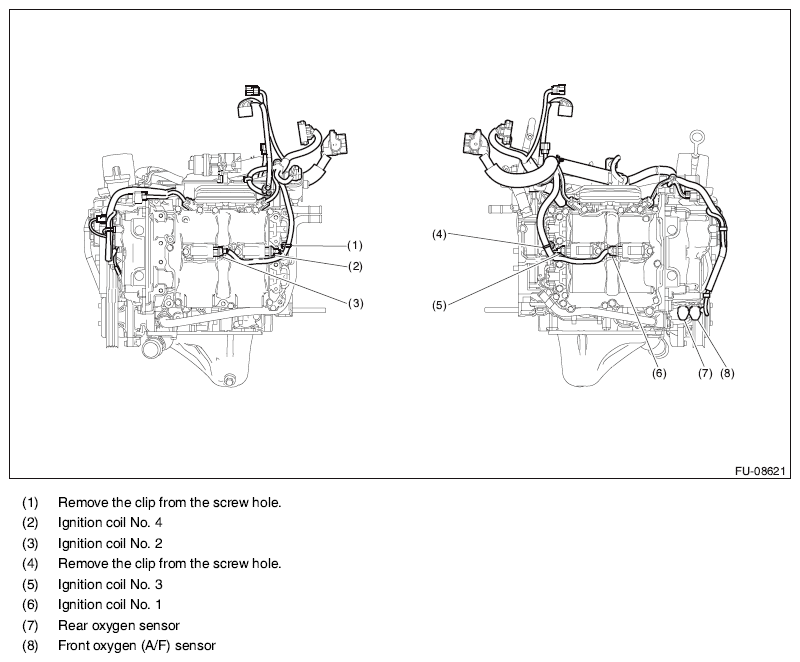

- Structural diagram 2
Courtesy of SUBARU OF AMERICA, INC.
