Check Accelerator Pedal Sensor Area (Method With Circuit Tester)

Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
Remove the ECM. < Ref. to REMOVAL , Engine Control Module (ECM). > < Ref. to REMOVAL , Engine Control Module (ECM). >
Install the ST between the ECM and bulkhead harness and the engine harness. < Ref. to CAUTION , General Description. > < Ref. to CAUTION , General Description. >
ST 18460AA050 CHECK BOARD
Connect the ground terminal to battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
Turn the ignition switch to ON. (Engine OFF)

Measure the voltage between ECM connector terminals using ST.

Main sensor side

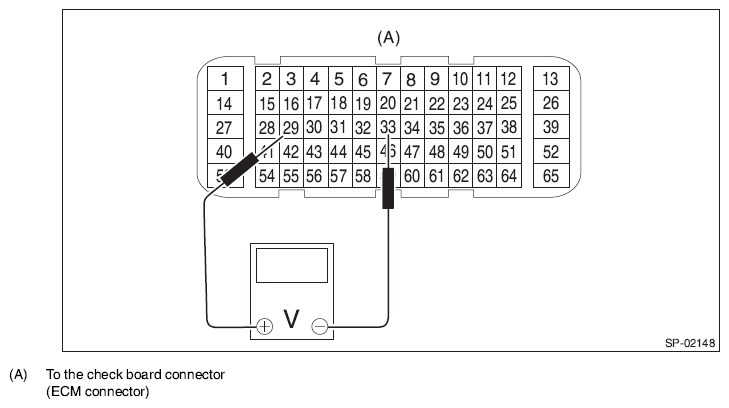

Fig 1: Measuring Voltage Between ECM Connector Terminals Using ST - Main Sensor Side
Courtesy of SUBARU OF AMERICA, INC.

Sub sensor side

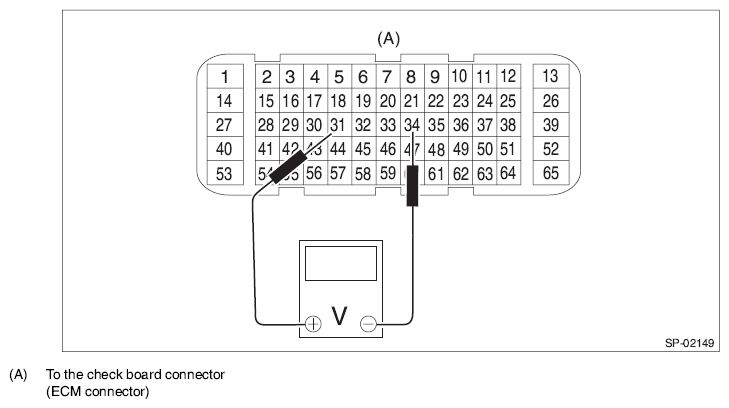

Fig 2: Measuring Voltage Between ECM Connector Terminals Using ST - Sub Sensor Side

Courtesy of SUBARU OF AMERICA, INC.

Accelerator pedal sensor	Accelerator pedal	Terminal No.	Standard
Main	Not depressed (full closed)	29 (+) and 33 (-)	0.3 - 1.1 V
Main	Depressed (full opened)	29 (+) and 33 (-)	2.3 - 3.8 V
Sub	Not depressed (full closed)	31 (+) and 34 (-)	0.3 - 1.1 V
Sub	Depressed (full opened)	31 (+) and 34 (-)	2.3 - 3.8 V
