Special Tool

Subaru Select Monitor

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
	- (Newly adopted tool)	SUBARU SELECT MONITOR 4	Used for setting of each function and troubleshooting for electrical system. NOTE: For detailed operation procedures of Subaru Select Monitor 4, refer to "Application help".

Fig 1: STSSM4

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS AW

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
	98299AL020	TEST HARNESS AW	Used when measuring voltage and resistance of occupant detection system.

Fig 2: ST98299AL020

Courtesy of SUBARU OF AMERICA, INC.

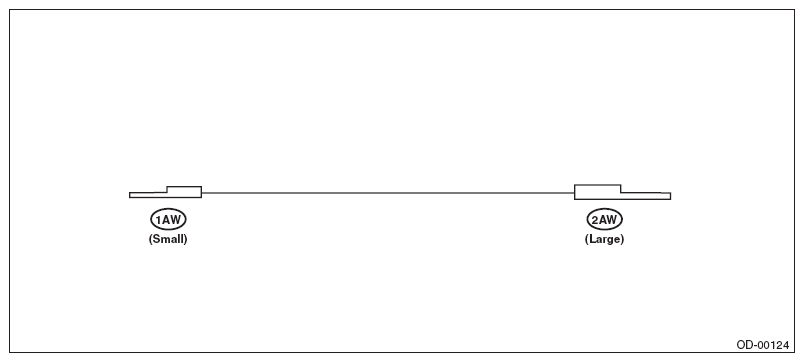

Fig 3: Test Harness AW Circuit Diagram

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS AG

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
	98299AG070	TEST HARNESS AG	Used when measuring voltage and resistance of airbag control module. Used together with TEST HARNESS AD AV. (98299AL010)

Fig 4: ST98299AG070

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Test Harness AG Connector Terminal Identification

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Test Harness AG Circuit Diagram

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS AD AV

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
	98299AL010	TEST HARNESS AD AV	Used when measuring voltage and resistance of airbag control module. Used together with test harness AG. (98299AG070)

Fig 7: ST98299AL010

Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Test Harness AD And AV Circuit Diagram

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS Y

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
	98299AG040	TEST HARNESS Y	Used for troubleshooting seat belt buckle switch.

Fig 9: ST98299AG040

Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Test Harness Y Circuit Diagram

Courtesy of SUBARU OF AMERICA, INC.

AIRBAG RESISTOR

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
	98299PA040	AIRBAG RESISTOR	Used in replacement of airbag module for which resistance value is same as airbag module.

Fig 11: ST98299PA040

Courtesy of SUBARU OF AMERICA, INC.

Fig 12: Test Harness Airbag Resistor Circuit Diagram

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS ADAPTER D

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
	98299SA010	TEST HARNESS ADAPTER D	Used for operation process of pretensioner. Used together with AIRBAG DEPLOYMENT TOOL. (98299PA030)

Fig 13: ST98299SA010

Courtesy of SUBARU OF AMERICA, INC.

AIRBAG DEPLOYMENT TOOL

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
	98299PA030	AIRBAG DEPLOYMENT TOOL	Used for operation process of pretensioner. Used together with each test harness adapter.

Fig 14: ST98299PA030

Courtesy of SUBARU OF AMERICA, INC.
