Model Without Push Button Ignition Switch

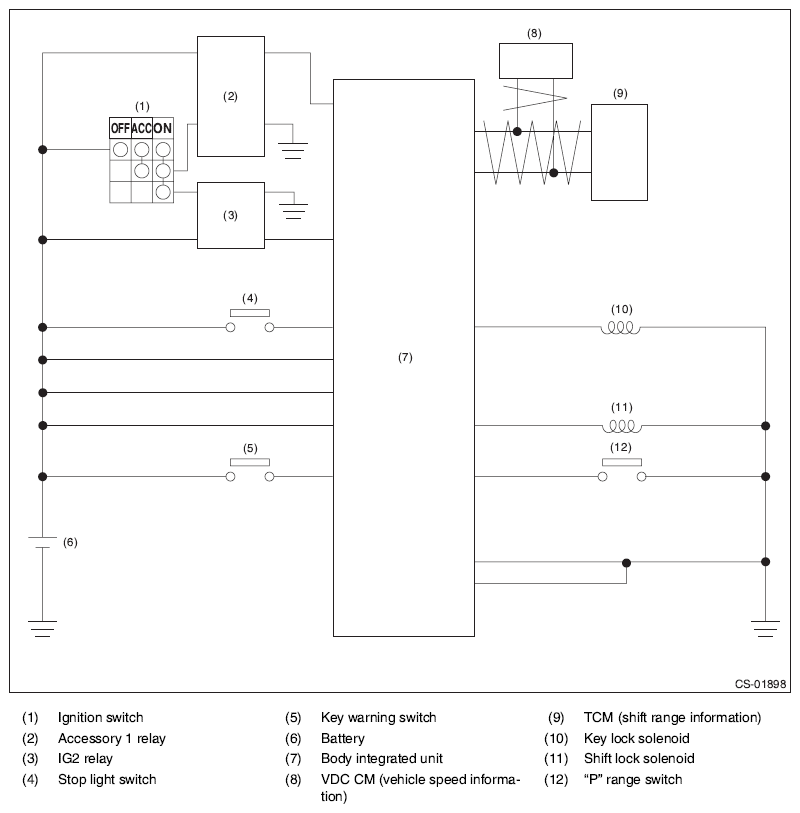

Fig 1: Ignition Switch - Circuit Diagram (Model Without Push Button Ignition Switch)
G10312669Courtesy of SUBARU OF AMERICA, INC.
