Select Cable: Adjustment

Shift the select lever to "N" range.
Lift up the vehicle.
Remove the center exhaust pipe. (2.5 L model) < Ref. to REMOVAL , Center Exhaust Pipe. >
Remove the front exhaust pipe and rear exhaust pipe. (3.6 L model) < Ref. to REMOVAL , Front Exhaust Pipe. > < Ref. to REMOVAL , Rear Exhaust Pipe. >
Remove the center exhaust cover.

Fig 1: Identifying Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Loosen the nuts on both sides.

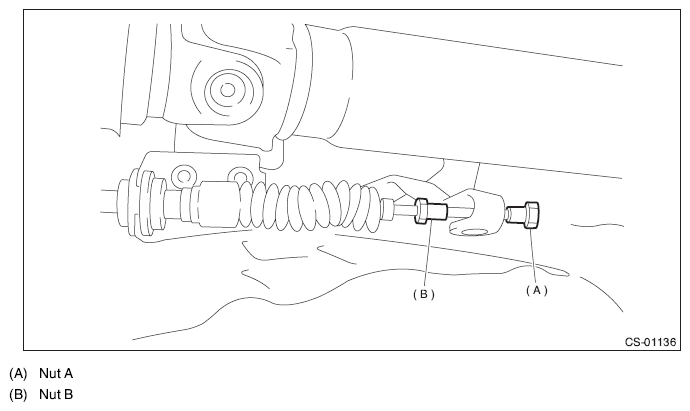

Fig 2: Identifying Select Cable Nuts
Courtesy of SUBARU OF AMERICA, INC.
Turn the nut B until it lightly touches the connector.

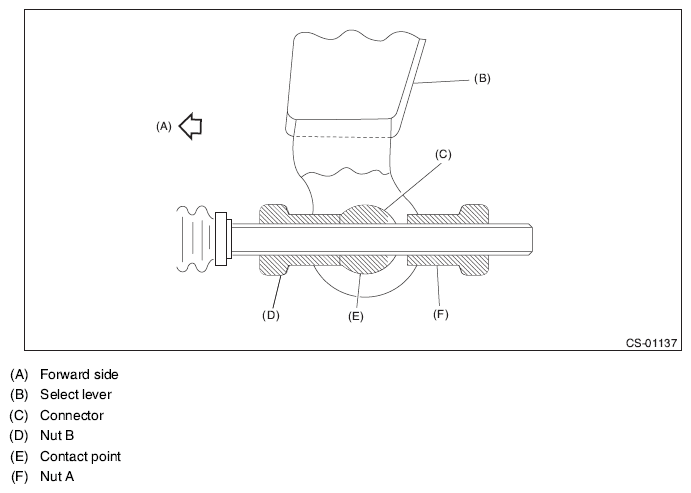

Fig 3: Identifying Select Lever, Connector And Nut
Courtesy of SUBARU OF AMERICA, INC.
Set a spanner wrench to the nut B so that it does not rotate, and then tighten the nut A.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

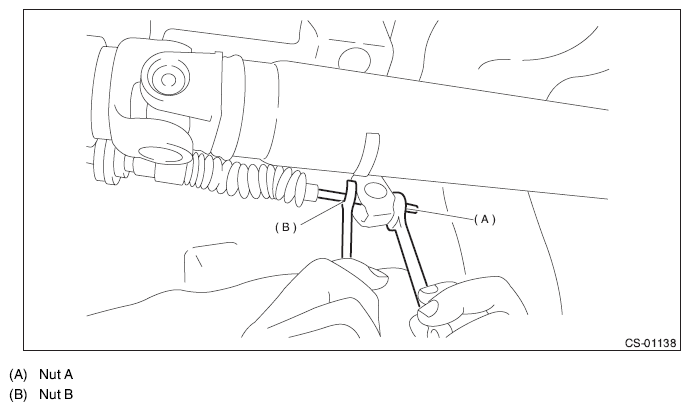

Fig 4: Tightening Select Cable Nut
Courtesy of SUBARU OF AMERICA, INC.
After the completion of adjustment, confirm that the select lever operates normally at all ranges.
Install the center exhaust cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Install the center exhaust pipe. (2.5 L model) < Ref. to INSTALLATION , Center Exhaust Pipe. >
Install the front exhaust pipe and rear exhaust pipe. (3.6 L model) < Ref. to INSTALLATION , Front Exhaust Pipe. > < Ref. to INSTALLATION , Rear Exhaust Pipe. >
