Select Cable: Installation

Position the select cable as shown in the figure, and install it to the plate assembly.
CAUTION:
- If the cable is installed in the wrong direction, loosen the bracket bolts, and then reinstall the cable in the correct direction.
- Do not adjust the cable end direction by turning it forcibly to prevent the boot from being twisted.
Tightening torque:

T: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

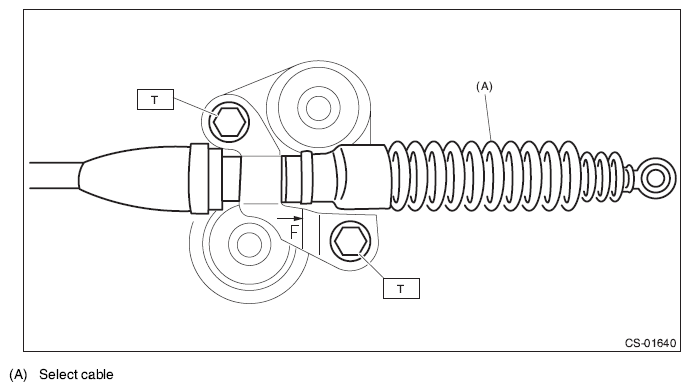

Fig 1: Positioning Select Cable
Courtesy of SUBARU OF AMERICA, INC.
Install the select cable to the shifter arm.
Install the plate assembly.
Tightening torque:

T: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

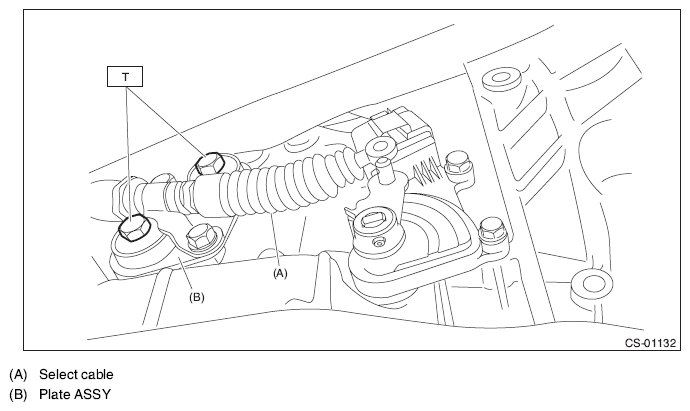

Fig 2: Identifying Plate Assembly And Select Cable
Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap pin to the shifter arm.

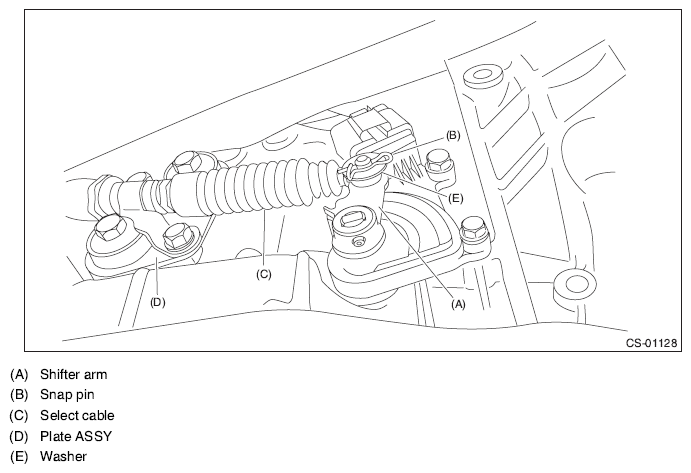

Fig 3: Identifying Washer, Snap Pin, Shifter Arm And Plate Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install new clamp paying attention to the installing direction.

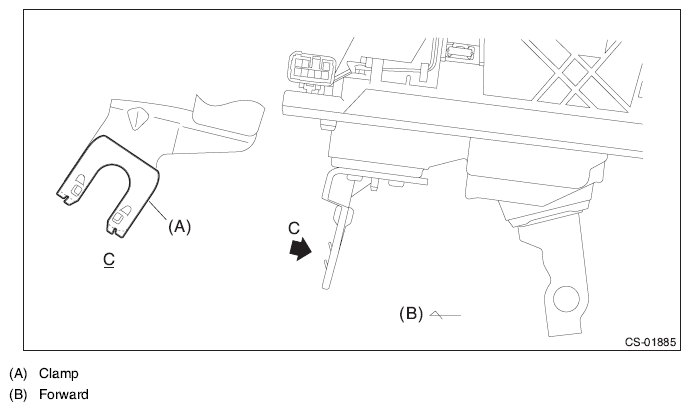

Fig 4: Installing Clamp
Courtesy of SUBARU OF AMERICA, INC.
Insert the cable socket into the bracket and the connector in the arrow direction from the side to assemble the cable.

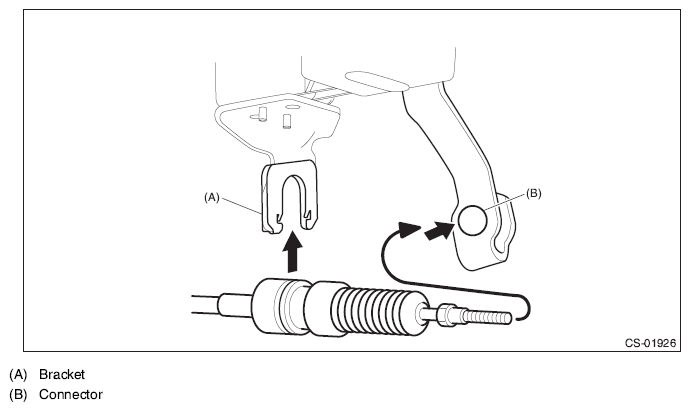

Fig 5: Inserting Cable Socket Into Bracket And Connector
Courtesy of SUBARU OF AMERICA, INC.
Shift the select lever to the "N" range, and then adjust the select cable position. < Ref. to ADJUSTMENT , Select Cable. >
Install the center exhaust cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Install the center exhaust pipe. (2.5 L model) < Ref. to INSTALLATION , Center Exhaust Pipe. >
Install the front exhaust pipe and rear exhaust pipe. (3.6 L model) < Ref. to INSTALLATION , Front Exhaust Pipe. > < Ref. to INSTALLATION , Rear Exhaust Pipe. >
Connect the ground terminal to battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
