RH Side

Remove the collector cover.

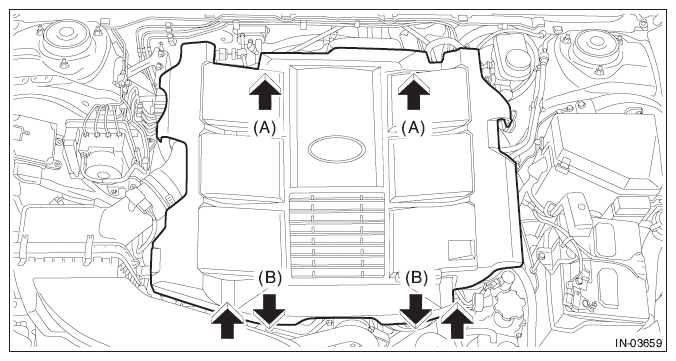

1. Carefully pull up the rear of collector cover at two positions (A).
2. Carefully pull up the front of collector cover at two positions (B) while moving it forward.

  Fig 1: Removing Collector Cover
  Courtesy of SUBARU OF AMERICA, INC.
Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
Open the fuel filler lid and remove the fuel filler cap.
NOTE: This operation is required to release the inner pressure of the fuel tank.
Loosen the clamp (A) securing the air intake boot.
Remove the bolt (B) securing the air intake boot to the collector cover bracket.

Fig 2: Identifying Air Intake Boot Clamp And Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot from the throttle body and the air cleaner case (rear), and move it to the left side wheel apron.

Fig 3: Identifying Throttle Body Air Intake Boot
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel pipe protector RH.

Fig 4: Locating Fuel Pipe Protector RH Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) from the fuel injector, and remove the bolts securing the fuel injector pipe to the cylinder head.

Fig 5: Identifying Fuel Injector Connector With Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector while lifting up the fuel injector pipe.
CAUTION:
- Be careful not to spill fuel.
- Catch the fuel from the pipes using a container or cloth.
Fig 6: Removing Fuel Injector
Courtesy of SUBARU OF AMERICA, INC.
