Intake Manifold: Disassembly

  1. Remove the fuel injector pipe and the fuel hose, and remove the fuel pipe assembly.

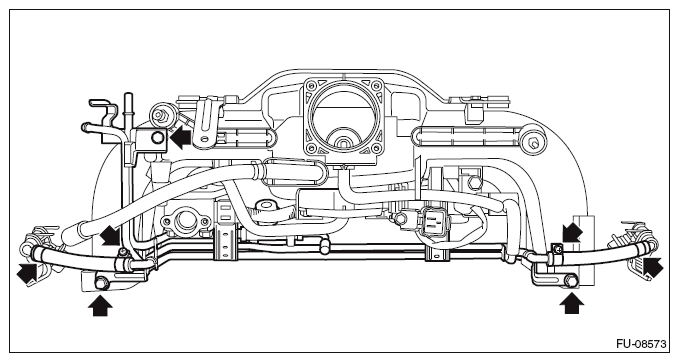

    Fig 1: Locating Fuel Pipe Assembly Bolts
    G10263560Courtesy of SUBARU OF AMERICA, INC.

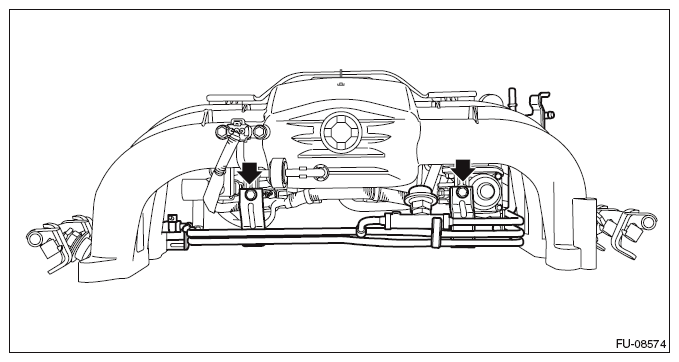

    Fig 2: Locating Intake Manifold Bolts
    G10263561Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the engine harness. < Ref. to ENGINE HARNESS , COMPONENT, General Description. >
  3. Remove the EGR control valve. < Ref. to REMOVAL , EGR Control Valve. >
  4. Remove the EGR pipe B. < Ref. to EGR PIPE B , REMOVAL, EGR Pipe. >
  5. Remove the manifold absolute pressure sensor. < Ref. to REMOVAL , Manifold Absolute Pressure Sensor. >
  6. Remove the purge control solenoid valve. < Ref. to REMOVAL , Purge Control Solenoid Valve. >
