LH Side

Install the spark plugs using a spark plug socket.
Tightening torque:

21 N.m (2.1 kgf-m, 15.5 ft-lb)

Fig 1: Installing Spark Plugs Using Spark Plug Socket
Courtesy of SUBARU OF AMERICA, INC.

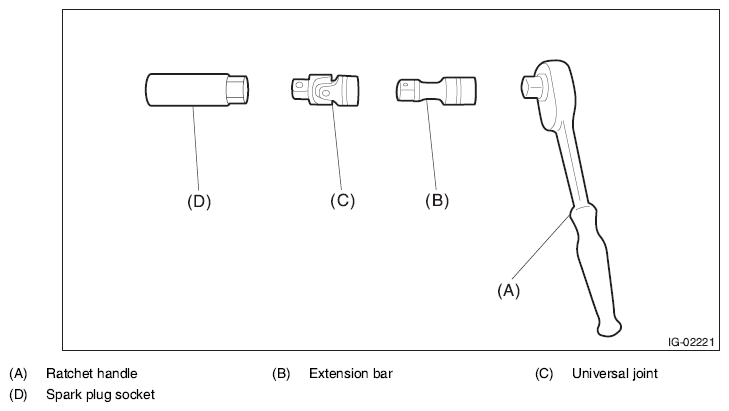

Fig 2: Identifying Ratchet Handle, Extension Bar, Universal Joint And Spark Plug Socket
Courtesy of SUBARU OF AMERICA, INC.
Install the ignition coil.
NOTE: Turn the #6 ignition coil to install it.
Connect the connector (B) to the ignition coil.
Install the engine harness stay (A).
Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

Fig 3: Identifying Engine Harness Stay And Ignition Coil Connector With Bolts With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Install the battery. < Ref. to INSTALLATION , Battery. >
Install the collector cover.
