Keyless Entry Control Module

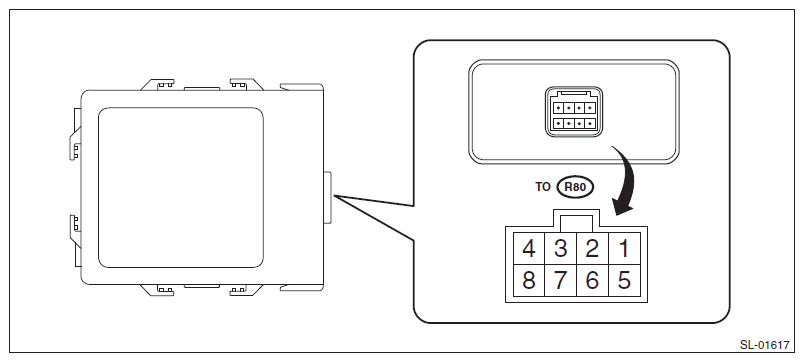

- Model without tire pressure monitoring system
Courtesy of SUBARU OF AMERICA, INC.
| Terminal No. |
Item |
Measuring condition |
Standard |
| 3 (U-ART com.) |
- |
Cannot be measured |
- |
| 4 (+B) ↔ Chassis ground |
Voltage |
Always |
10 - 14 V |
| 7 (GND) ↔ Chassis ground |
Resistance |
Always |
Less than 1 Ω |
- Model with tire pressure monitoring system
Courtesy of SUBARU OF AMERICA, INC.
| Terminal No. |
Item |
Measuring condition |
Standard |
| 4 (IG) ↔ Chassis ground |
Resistance |
IG OFF → ON |
0V → 10 - 14V |
| 5 (GND) ↔ Chassis ground |
Resistance |
Always |
Less than 1 Ω |
| 6 (+B) ↔ Chassis ground |
Voltage |
Always |
10 - 14V |
| 11 (U-ART com.) |
- |
Cannot be measured |
- |
