Ignition Key Lock: Replacement

CAUTION:
  • Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". < Ref. to CAUTION , General Description. >
  • Do not allow harness and connectors to interfere or get tangled up with other parts.
  • If the steering wheel and steering angle sensor (steering roll connector) are removed, perform "VSC(VDC) Centering Mode" of the VDC. < Ref. to VDC SENSOR MIDPOINT SETTING MODE , ADJUSTMENT, VDC Control Module and Hydraulic Control Unit (VDCCM&H/U). >
  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. < Ref. to BATTERY , NOTE, Note. >
    NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
  2. Remove the column assembly - steering. < Ref. to REMOVAL , Steering Column. >
  3. Remove the ignition key lock.
    1. Secure the column assembly - steering in a vise.
    2. Use the reverse tap and drill to remove the set bolt and remove the ignition key lock.

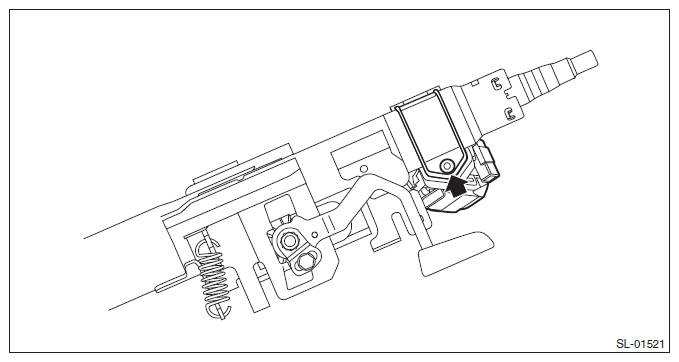

      Fig 1: Locating Ignition Key Lock Set Bolt
      G08319257Courtesy of SUBARU OF AMERICA, INC.
  4. Install the ignition key lock.
    1. Secure the ignition key lock to the column assembly - steering.
    2. Use new set bolts. Tighten the bolt until the bolt head is broken (bolt head wrenched off).
  5. Install the column assembly - steering. < Ref. to INSTALLATION , Steering Column. >
  6. Connect the battery ground terminal. < Ref. to BATTERY , NOTE, Note. >
    NOTE: For models other than STI model, connect the ground terminal to battery sensor.
