Hill Hold Switch: Removal

  1. Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Note. >
  2. Remove the console box assembly. < Ref. to MODEL WITH PARKING BRAKE LEVER , REMOVAL, Console Box. >
  3. Remove the parking brake switch. < Ref. to REMOVAL , Parking Brake Switch. >
  4. Disconnect the connector, and remove the hill hold switch.

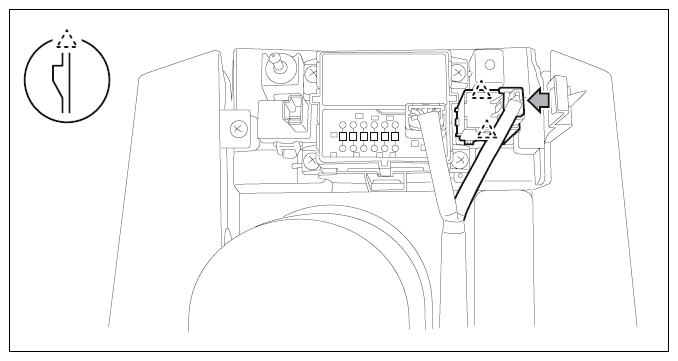

    Fig 1: Locating Hill Hold Switch Connector
    G10297698Courtesy of SUBARU OF AMERICA, INC.
