VDC Control Module and Hydraulic Control Unit (VDCCM&H/U): Removal

CAUTION:

Avoid unnecessary removal of parts in order to prevent fluid leakage.
When the VDCCM&H/U components are removed, be sure to perform the installation according to the installation procedures. < Ref. to INSTALLATION , VDC Control Module and Hydraulic Control Unit (VDCCM&H/U). >

Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note. >
NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
Remove the power steering control module. (Except for STI model) < Ref. to REMOVAL , Power Steering Control Module. >
Remove the engine control module (ECM). (Except for STI model) < Ref. to REMOVAL , Engine Control Module (ECM). >
Remove the chamber assembly. (STI model) < Ref. to REMOVAL , Chamber Assembly. >
Remove the VDC control module & hydraulic control unit (VDCCM&H/U).
CAUTION:
- Do not pull on the harness when disconnecting the connector.
- Wrap the brake pipe with a vinyl bag so as not to spill the brake fluid on the painted surface of the vehicle body.
- If brake fluid is spilled on the painted surface of the vehicle body, wash it off immediately with water and wipe clean.
1. Remove any dirt from around the VDCCM&H/U.
2. Remove the power steering control module. (Except for STI model) < Ref. to REMOVAL , Power Steering Control Module. >

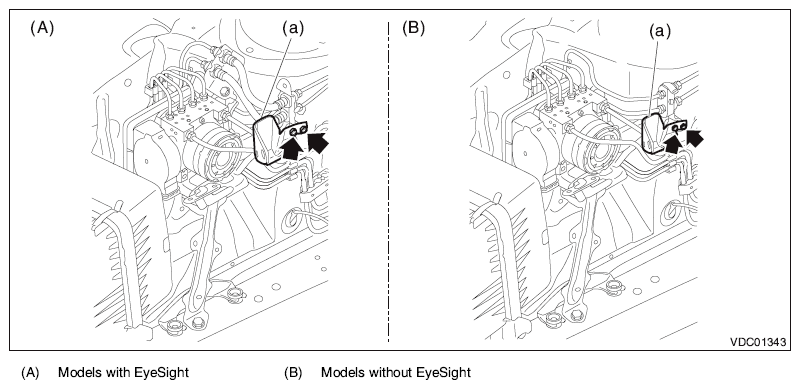

3. Remove the nuts, and remove the bracket (a) from the bracket - connector front. (Except for STI model)

  Fig 1: Locating Bracket And Nut Of Bracket - Connector Front
  Courtesy of SUBARU OF AMERICA, INC.
4. Pull up the lock lever (b) while pressing the lock button (a) and disconnect the VDCCM&H/U connector.
5. Separate each brake pipe using a flare nut wrench.

  Fig 2: Pulling Up Lock Lever
  Courtesy of SUBARU OF AMERICA, INC.
6. Remove the bolts, and remove the bracket (a) and hose (b) from the bracket - hydraulic unit. (Models with EyeSight)

  Fig 3: Identifying Bracket And Hose With Bolt
  Courtesy of SUBARU OF AMERICA, INC.

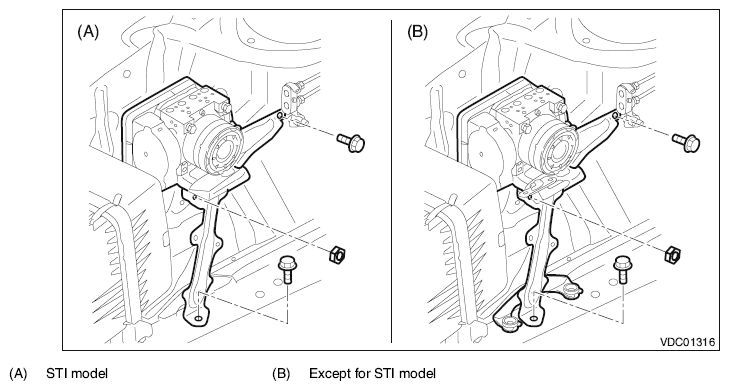

7. Remove the bolts and nuts, and remove the bracket - hydraulic unit and the VDCCM&H/U.

  Fig 4: Identifying Bolts And Nuts Of Bracket - Hydraulic Unit And VDCCM&H/U
  Courtesy of SUBARU OF AMERICA, INC.
8. Remove the bolts, and remove the VDCCM&H/U (a) from the bracket - hydraulic unit (b).

  Fig 5: Identifying VDCCM&H/U With Bolts
  Courtesy of SUBARU OF AMERICA, INC.
