Conditions For VDC Sequence Control

NOTE: The control operation starts at point A.

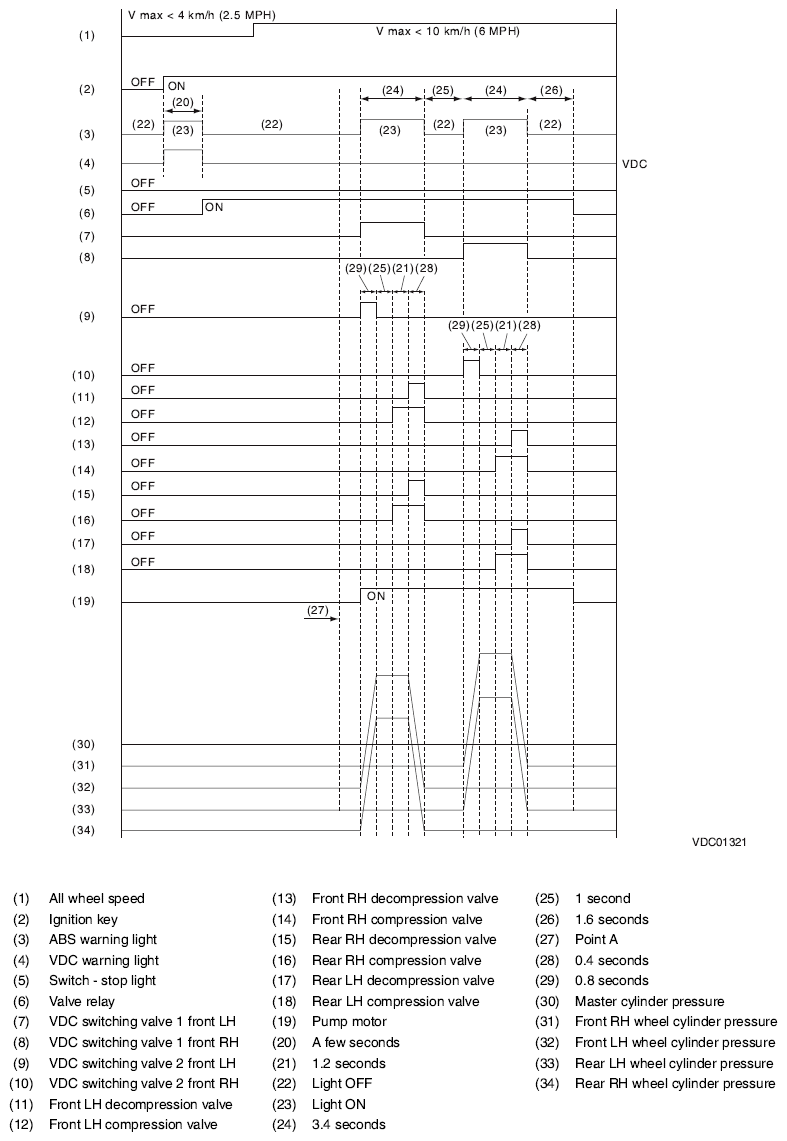

Fig 1: VDC Sequence Control Graph
G10297682Courtesy of SUBARU OF AMERICA, INC.
