Intake Side

Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Note. >
Remove the air intake duct. (RH side only) < Ref. to REMOVAL , Air Intake Duct. >
Disconnect the connector (A) from the camshaft position sensor, and remove the camshaft position sensor from the chain cover.
- RH side

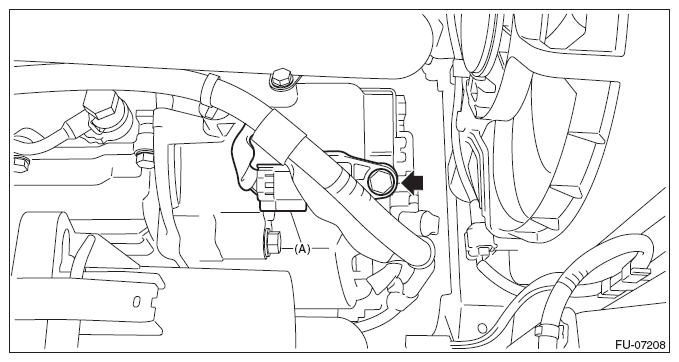

  Fig 1: Identifying Camshaft Position Sensor Connector With Bolt - Intake RH Side
  Courtesy of SUBARU OF AMERICA, INC.
- LH side

  Fig 2: Identifying Camshaft Position Sensor Connector With Bolt - Intake LH Side
  Courtesy of SUBARU OF AMERICA, INC.
