Electronic Throttle Control Relay: Removal

  1. Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Note. >
  2. Remove the instrument panel lower cover. < Ref. to REMOVAL , Instrument Panel Lower Cover. >
  3. Remove the nut and bolt, and move the fuse block downwards.

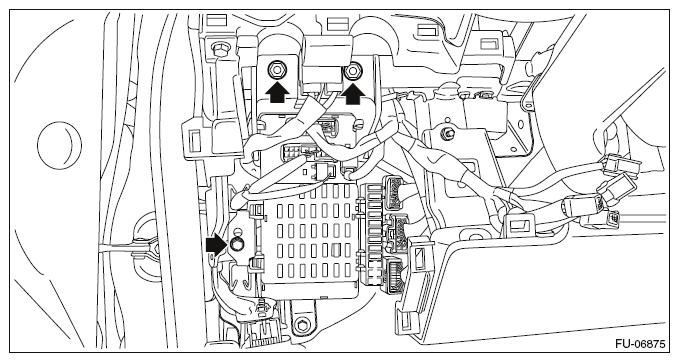

    Fig 1: Locating Fuse Block Nuts And Bolts
    G09475594Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the electronic throttle control relay from the relay block.

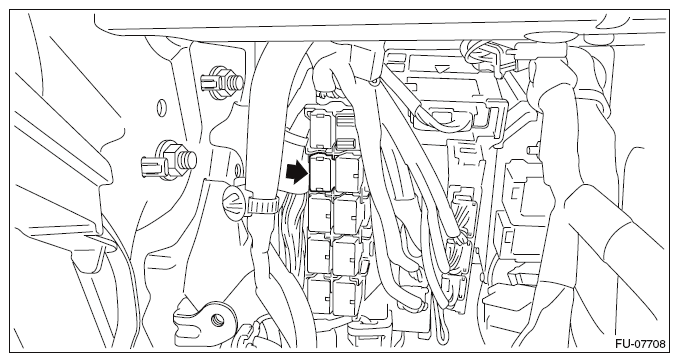

    Fig 2: Locating Electronic Throttle Control Relay
    G09475599Courtesy of SUBARU OF AMERICA, INC.
