Engine Coolant Temperature Sensor: Removal

  1. Remove the collector cover. < Ref. to REMOVAL , Collector Covers
  2. Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Notes
  3. Drain engine coolant. < Ref. to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolants
  4. Disconnect the connector (A) from the engine coolant temperature sensor, and remove the engine coolant temperature sensor.

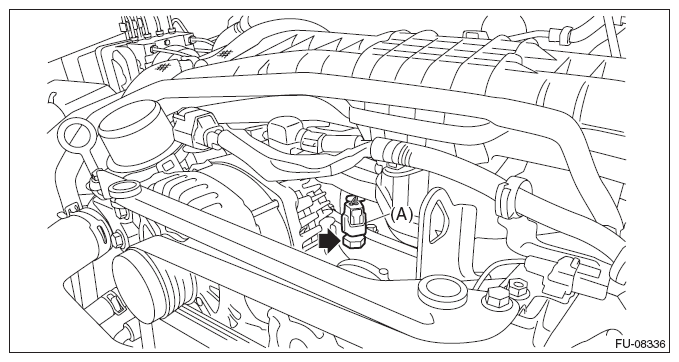

    Fig 1: Locating Engine Coolant Temperature Sensor Connector
    G10266199Courtesy of SUBARU OF AMERICA, INC.
