Engine Wiring Harness: Installation

Set the engine wiring harness to the engine, and connect the connector.
NOTE:
- If the clip is damaged, replace it with a new part.
- Before replacing the clip, put an alignment mark (a) on both engine wiring harness and clip to remove the clip, and then align to the alignment mark (a) to attach a new clip to the engine wiring harness.
Fig 1: Identifying Alignment Mark On Both Engine Wiring Harness And Clip
Courtesy of SUBARU OF AMERICA, INC.
- Structural diagram 1

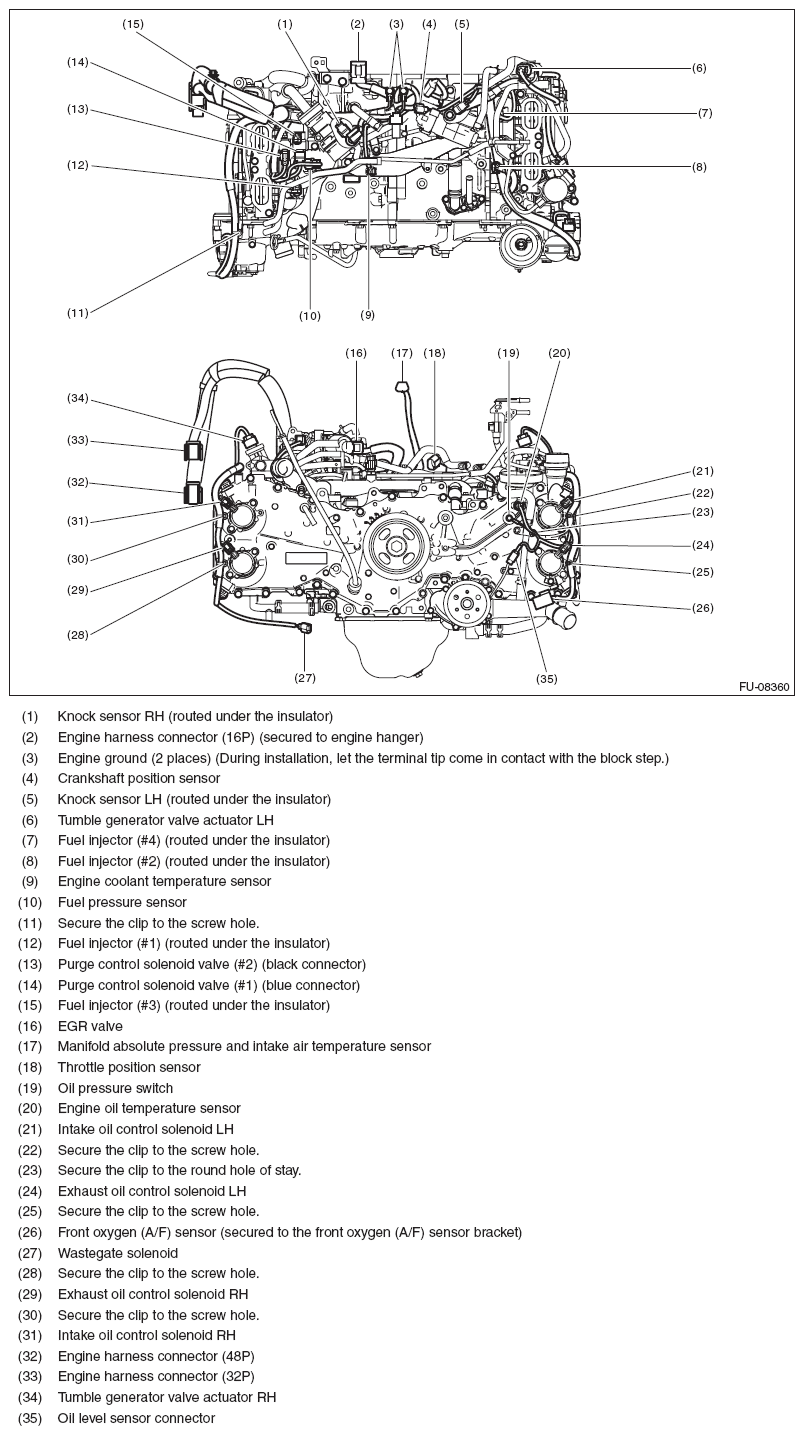

  Fig 2: Engine Wiring Harness - Structural Diagram 1
  Courtesy of SUBARU OF AMERICA, INC.
- Structural diagram 2

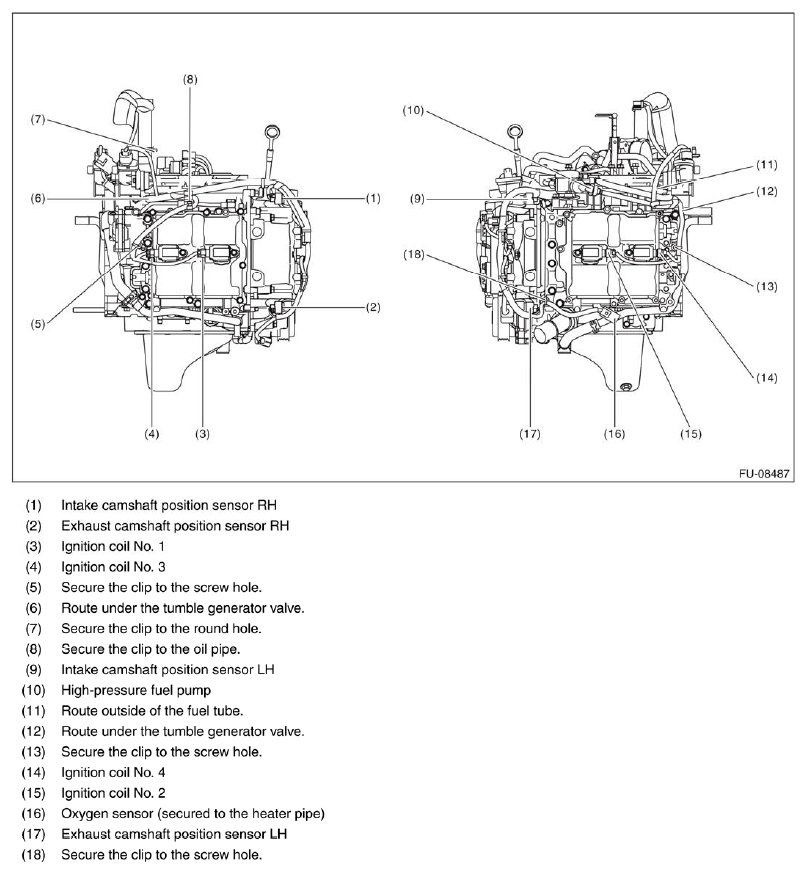

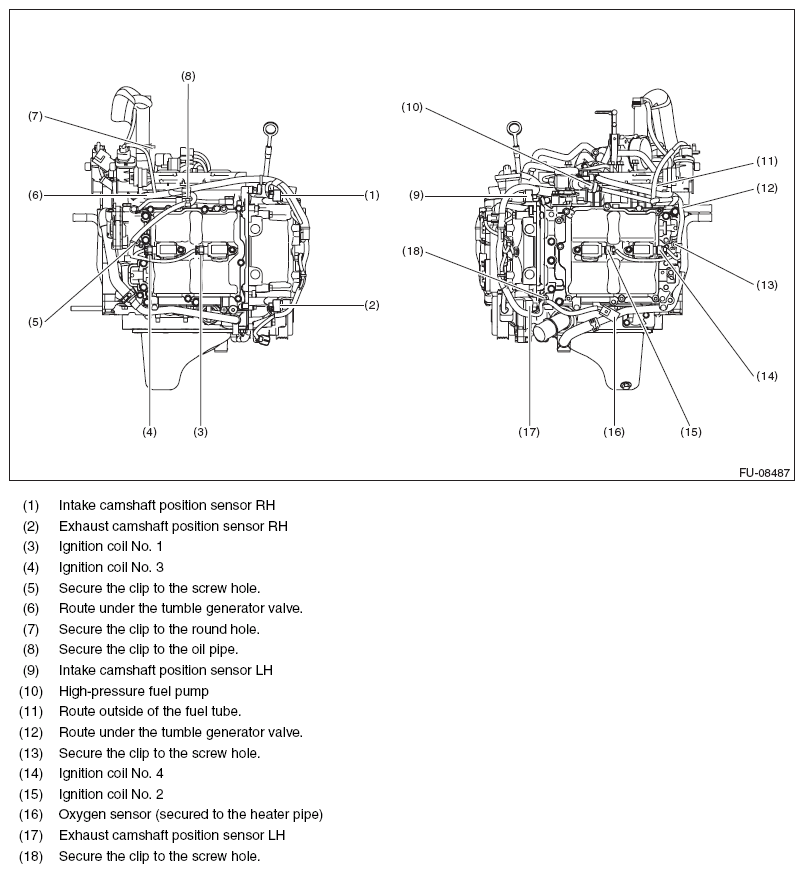

  Fig 3: Engine Wiring Harness - Structural Diagram 2
  Courtesy of SUBARU OF AMERICA, INC.
Install the engine wiring harness.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

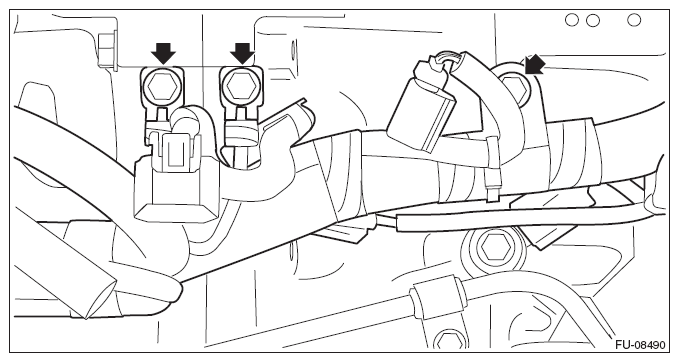

Fig 4: Locating Engine Wiring Harness Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the engine control module (ECM). < Ref. to INSTALLATION , Engine Control Module (ECM). >
Install the fuel insulator. < Ref. to INSTALLATION , Fuel Insulator. >
Install the intake manifold. < Ref. to INSTALLATION , Intake Manifold. >
Connect the ground terminal to battery sensor. < Ref. to BATTERY , NOTE, Note. >
