Engine Wiring Harness: Removal
- Disconnect the ground terminal from battery sensor. < Ref. to
BATTERY
, NOTE, Note. >
- Remove the intake manifold. < Ref. to
REMOVAL , Intake Manifold. >
- Remove the fuel insulator. < Ref. to
REMOVAL , Fuel Insulator. >
- Remove the engine control module (ECM). < Ref. to
REMOVAL , Engine Control Module (ECM). >
- Disconnect the connector from the engine.

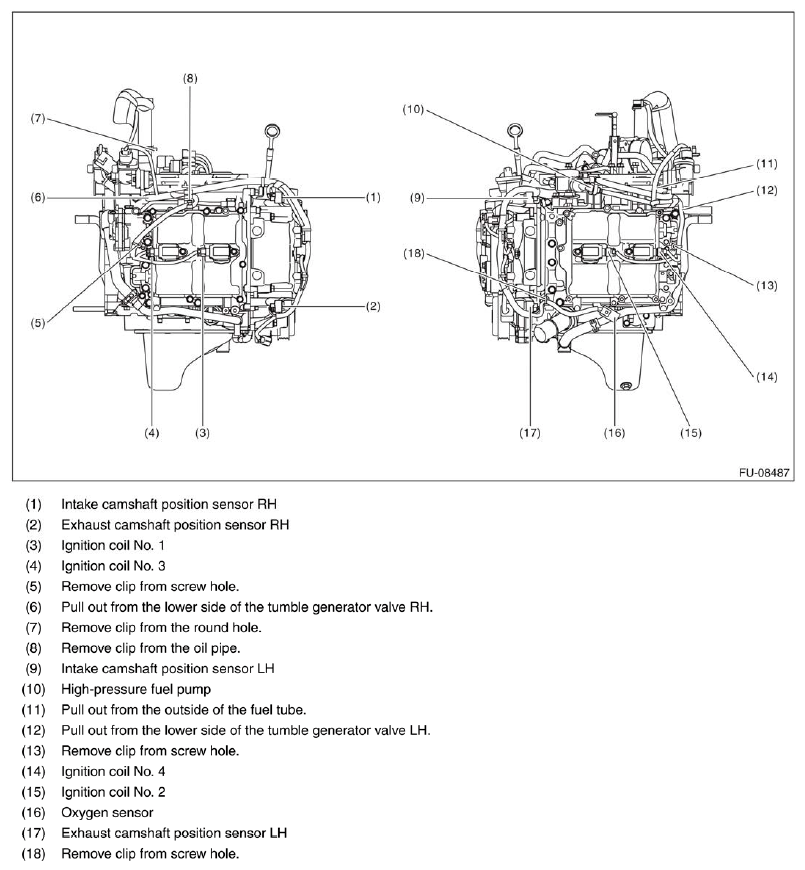

- Structural diagram 1
Courtesy of SUBARU OF AMERICA, INC.

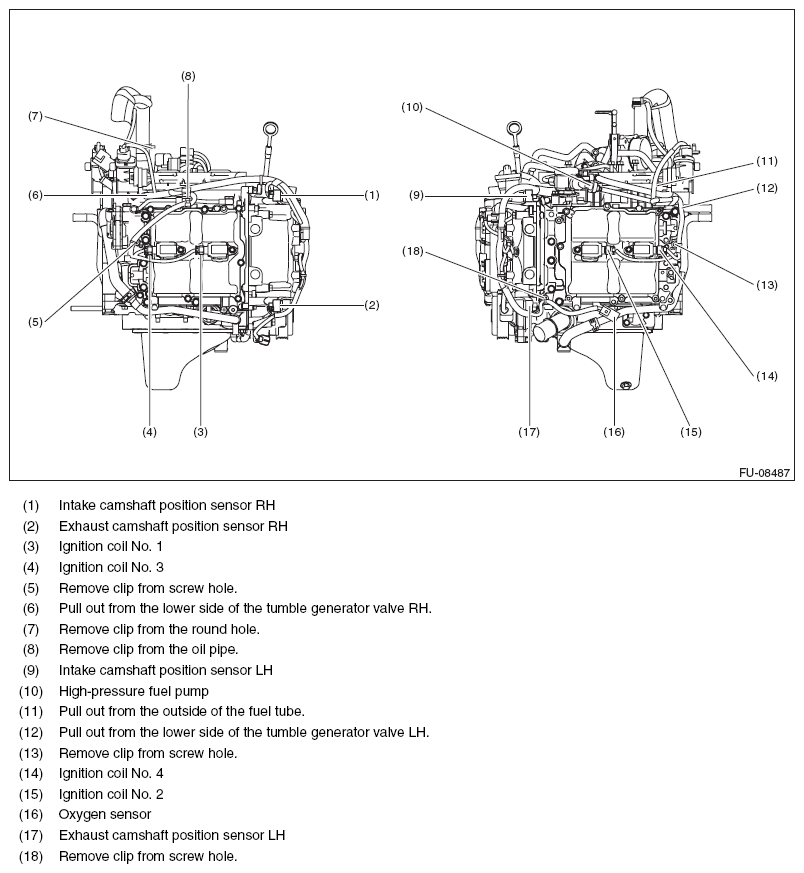

- Structural diagram 2
Courtesy of SUBARU OF AMERICA, INC.

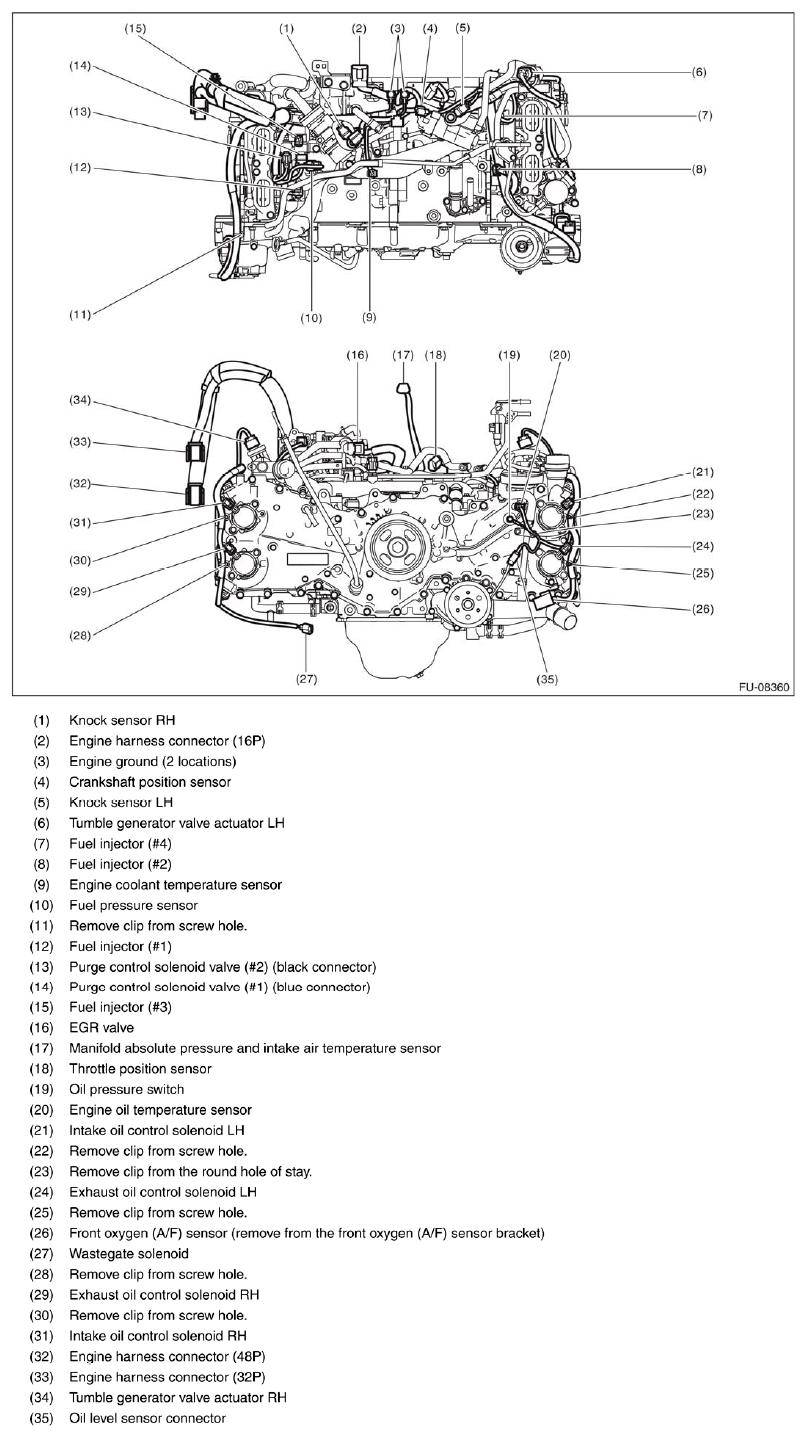

- Remove the engine wiring harness.
Courtesy of SUBARU OF AMERICA, INC.
