Body Integrated Unit Installation

Tighten the bolts and nuts in the figure to the torque specified below.

Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

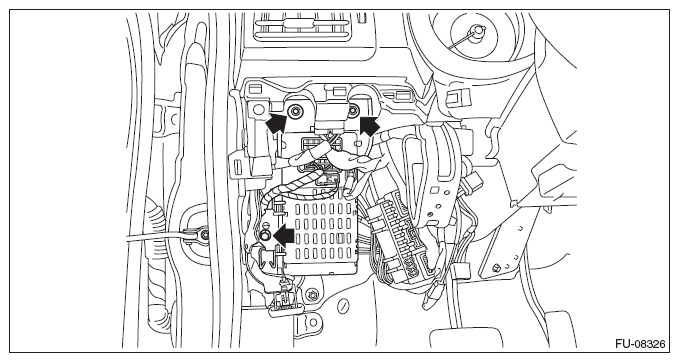

Fig 1: Locating Body Integrated Unit Bolts

Courtesy of SUBARU OF AMERICA, INC.

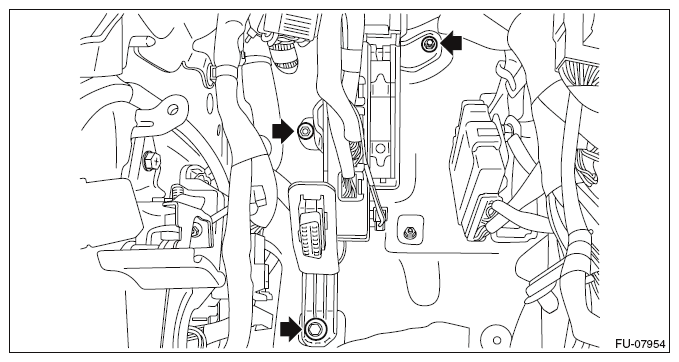

Fig 2: Locating Body Integrated Unit Nuts

Courtesy of SUBARU OF AMERICA, INC.
