Fuel Injector RH

CAUTION:

Be careful not to spill fuel.
Catch the fuel from the pipes using a container or cloth.

Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Note. >
Remove the intake manifold. < Ref. to REMOVAL , Intake Manifold. >
Remove the fuel pipe insulator No. 1. < Ref. to FUEL PIPE INSULATOR NO. 1 , REMOVAL, Fuel Insulator. >
Remove the fuel pipe insulator No. 2. < Ref. to FUEL PIPE INSULATOR NO. 2 , REMOVAL, Fuel Insulator. >
Remove the fuel pipe insulator No. 3. < Ref. to FUEL PIPE INSULATOR NO. 3 , REMOVAL, Fuel Insulator. >
Remove the flare nut (A) and bolt (B), and then remove the high-pressure fuel delivery pipe assembly.

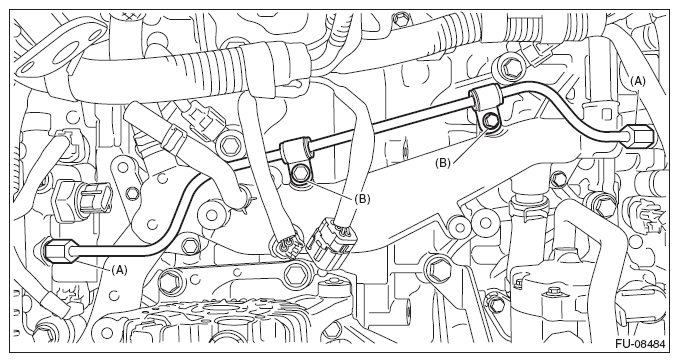

Fig 1: Identifying High-Pressure Fuel Delivery Pipe Assembly Flare Nuts And Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) from fuel injector, and remove the fuel injector pipe.

Fig 2: Identifying Fuel Injector Connector With Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the holder from the fuel injector.

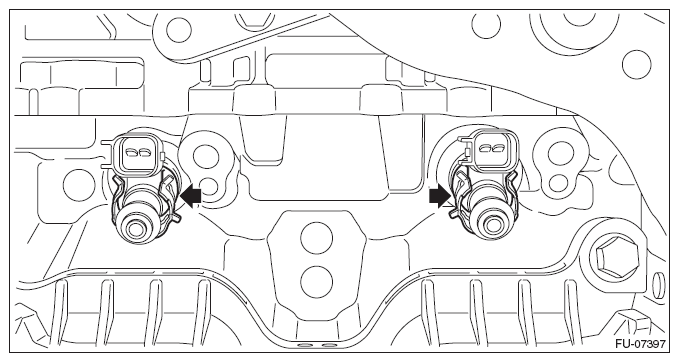

Fig 3: Locating Holder Of Fuel Injector
Courtesy of SUBARU OF AMERICA, INC.
Using ST, remove the fuel injector from the cylinder head.
ST 18356AA000 INJECTOR REMOVER
1. Set the ST so that its mark faces the center of the engine.

  Fig 4: Removing Fuel Injector From Cylinder Head Using Injector Remover ST18356AA000
  Courtesy of SUBARU OF AMERICA, INC.
2. Pinch the fuel injector groove (A) with the claw section (B) of ST.

  Fig 5: Pinching Fuel Injector Groove With Claw Section Of ST
  Courtesy of SUBARU OF AMERICA, INC.
3. Press the ST to the cylinder head.

  Fig 6: Pressing ST To Cylinder Head
  Courtesy of SUBARU OF AMERICA, INC.
4. Screw in the threaded section of the ST clockwise, and remove the fuel injector from the cylinder head.

  Fig 7: Screwing Threaded Section Of ST Clockwise
  Courtesy of SUBARU OF AMERICA, INC.
