Fuel Pump Insulator

Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Note. >
Remove the intake manifold. < Ref. to REMOVAL , Intake Manifold. >
Remove the clip (A) on the generator cord, and remove the fuel pipe protector.

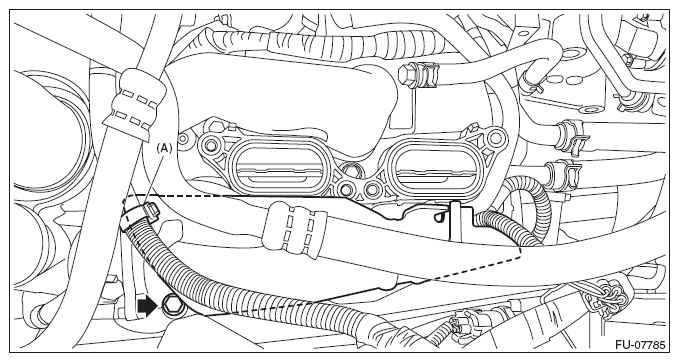

Fig 1: Identifying Generator Cord Clip With Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel pump insulator.

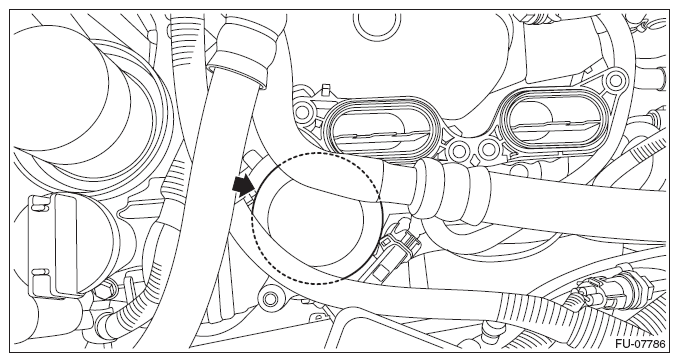

Fig 2: Locating Fuel Pump Insulator
Courtesy of SUBARU OF AMERICA, INC.
