Fuel Pump Control Unit: Removal
- Disconnect the ground terminal from battery sensor. < Ref. to
BATTERY
, NOTE, Note. >
- Remove the right side trunk side trim. < Ref. to
REMOVAL
, Trunk Room Trim. >

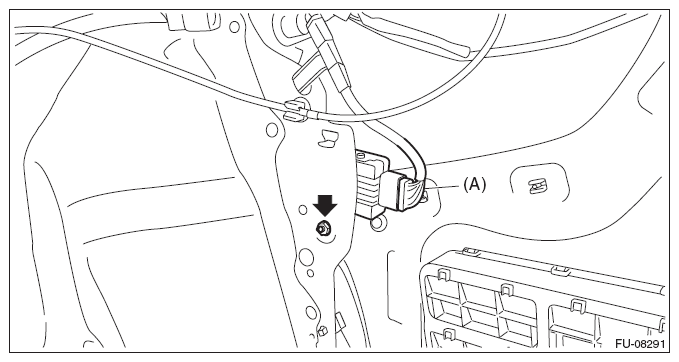

- Disconnect the connector (A), and remove the fuel pump control unit.
Courtesy of SUBARU OF AMERICA, INC.
