Draining Fuel (With SUBARU Select Monitor)
WARNING:
Place "NO OPEN FLAMES" signs near the working area.
CAUTION:
Be careful not to spill fuel.
NOTE:
- If the fuel pump cannot be driven, refer to the procedures for draining from the fuel filler hose. < Ref. to DRAINING FUEL (THROUGH THE FUEL FILLER HOSE) , PROCEDURE, Fuel. >
- Be careful not to let the battery run-out.
- Be aware that the fuel may remain in the fuel tank after draining the fuel.
- Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
- Disconnect the fuel delivery tube from the fuel pipe assembly, and remove the clip (A) securing the fuel delivery tube.CAUTION:
- Be careful not to spill fuel.
- Catch the fuel from the tubes using a container or cloth.
NOTE: Disconnect the quick connector as shown in the figure. - Connect ST to the fuel delivery tube.
ST 18471AA000 FUEL PIPE ADAPTER
- Connect the gasoline proof hose to ST and put the end of the hose in the container.
- Drive the fuel pump and drain the fuel using Subaru Select Monitor.CAUTION: Be careful not to spill fuel.NOTE: For detailed operation procedures, refer to "PC application help for Subaru Select Monitor".
- Install the related parts in the reverse order after draining the fuel.CAUTION:
- Be careful not to spill fuel.
- Catch the fuel from the tubes using a container or cloth.
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- When connecting the quick connector, make sure to insert it all the way in before locking the slider.
- When it is difficult to lock the slider, check that the connector is fully inserted.
- After locking the slider, check again that the quick connector is securely connected.

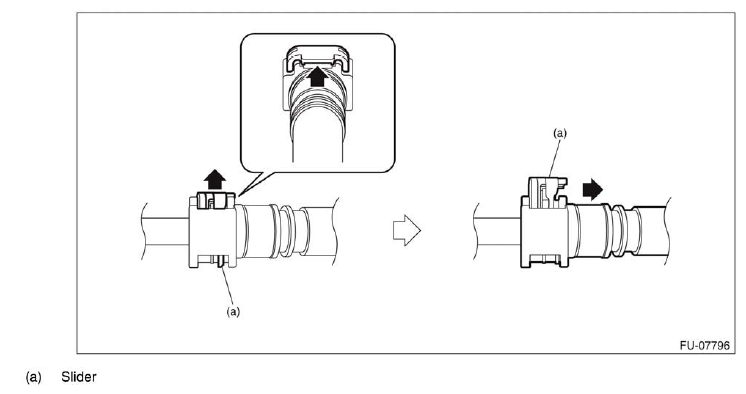

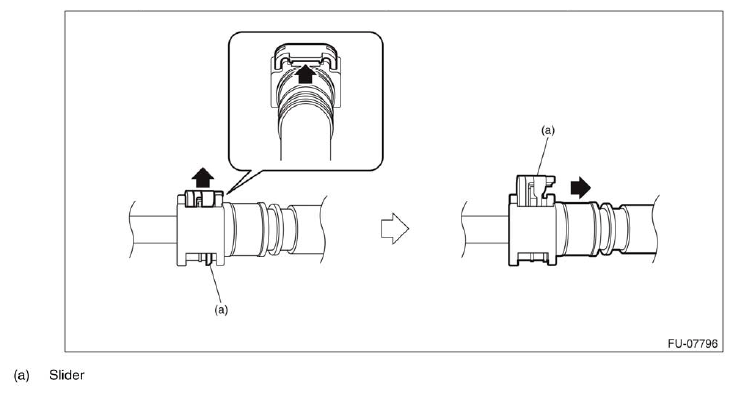

NOTE:- Disconnect the quick connector on the fuel delivery tube as shown in the figure.

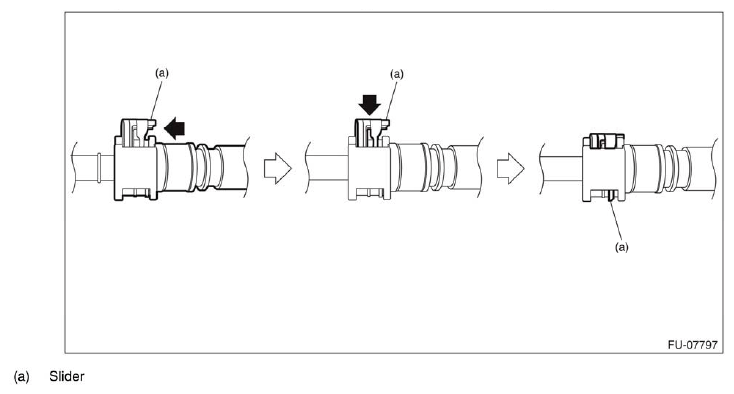

- Connect the quick connector on the fuel delivery tube as shown in the figure.
