RH Side

  1. Remove the collector cover. < Ref. to REMOVAL , Collector Covers
  2. Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Notes
  3. Remove the intake manifold. < Ref. to REMOVAL , Intake Manifolds
  4. Remove the fuel pipe insulator No. 3. < Ref. to FUEL PIPE INSULATOR NO. 3 , REMOVAL, Fuel Insulators
  5. Disconnect the connector (A) from the knock sensor, and remove the knock sensor from the cylinder block.

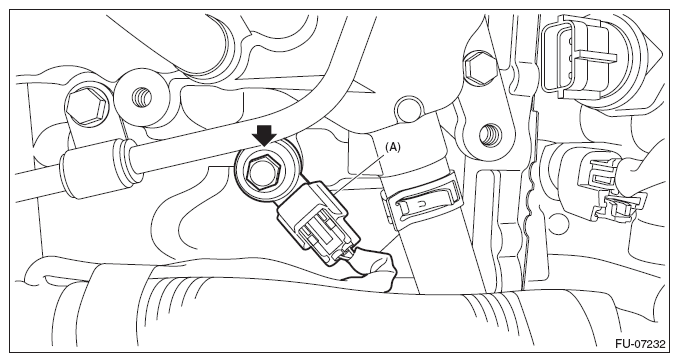

    Fig 1: Identifying Knock Sensor Connector With Bolt (RH Side)
    G09479750Courtesy of SUBARU OF AMERICA, INC.
