Oxygen Sensor Relay: Removal

Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Note. >
Remove the instrument panel lower cover. < Ref. to REMOVAL , Instrument Panel Lower Cover. >
Remove the nut and bolt, and move the fuse block downwards.

Fig 1: Locating Fuse Block Nuts And Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the oxygen sensor relay from the relay block.

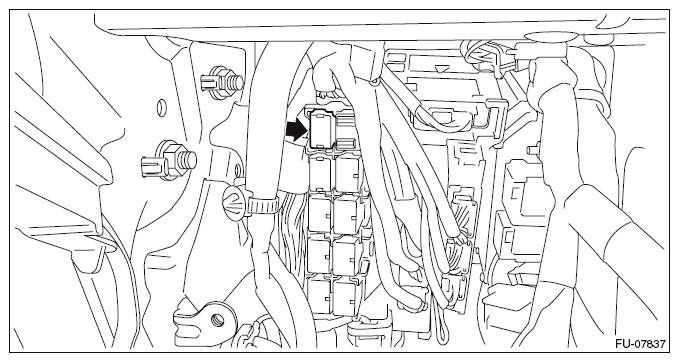

Fig 2: Locating Oxygen Sensor Relay
Courtesy of SUBARU OF AMERICA, INC.
