Wastegate Control Solenoid Valve: Removal

  1. Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Note. >
  2. Remove the intake duct No. 2. < Ref. to INTAKE DUCT NO. 2 , REMOVAL, Intake Duct. >
  3. Disconnect the connector (A) and vacuum hose (B) from the wastegate control solenoid valve.
  4. Remove the wastegate control solenoid valve from the intake duct No. 1.

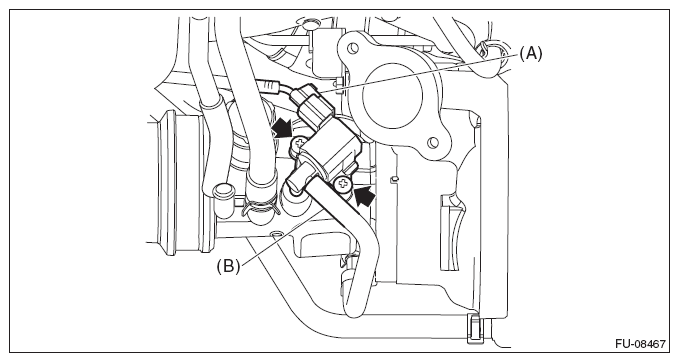

    Fig 1: Identifying Connector And Vacuum Hose Of Wastegate Control Solenoid Valve
    G10266240Courtesy of SUBARU OF AMERICA, INC.
