Check Accelerator Pedal Sensor Area (Method With Circuit Tester)

Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Note. >
Remove the ECM. < Ref. to REMOVAL , Engine Control Module (ECM). >
Install the ST between the ECM and bulkhead harness and the engine harness. < Ref. to CAUTION , General Description. >
ST 18460AA030 CHECK BOARD
Connect the ground terminal to battery sensor. < Ref. to BATTERY , NOTE, Note. >
Turn the ignition switch to ON. (Engine OFF)

Measure the voltage between ECM connector terminals using ST.

Main sensor side

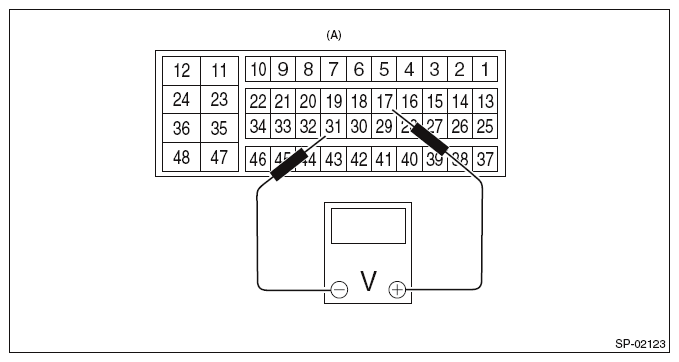

Fig 1: Measuring Voltage Between ECM Connector Terminals Using ST (Main Sensor Side)
Courtesy of SUBARU OF AMERICA, INC.

Sub sensor side

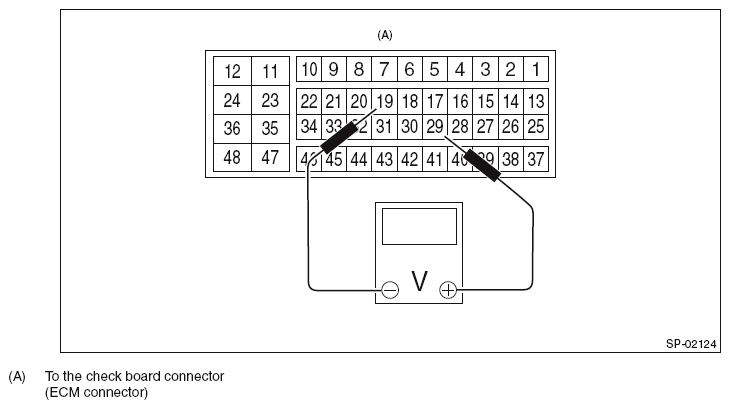

Fig 2: Measuring Voltage Between ECM Connector Terminals Using ST (Sub Sensor Side)

Courtesy of SUBARU OF AMERICA, INC.

Accelerator pedal sensor	Accelerator pedal	Terminal No.	Standard
Main	Not depressed (full closed)	17 (+) and 31 (-)	0.4 - 1.0 V
Main	Depressed (full opened)	17 (+) and 31 (-)	2.4 - 3.7 V
Sub	Not depressed (full closed)	29 (+) and 19 (-)	0.4 - 1.0 V
Sub	Depressed (full opened)	29 (+) and 19 (-)	2.4 - 3.7 V

After inspection, install the related parts in the reverse order of removal.
