Engine Controls (Diagnostics) (2.0L) - Introduction: Electrical Component Location: Location: Sensor

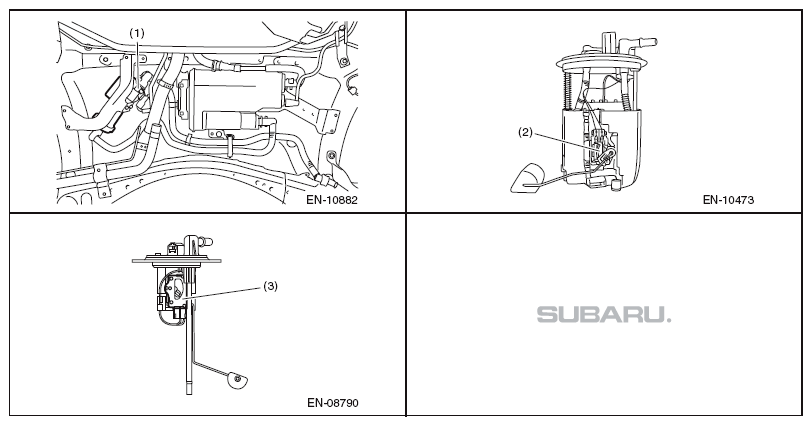

Fig 1: Engine Sensor Electrical Component Location (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

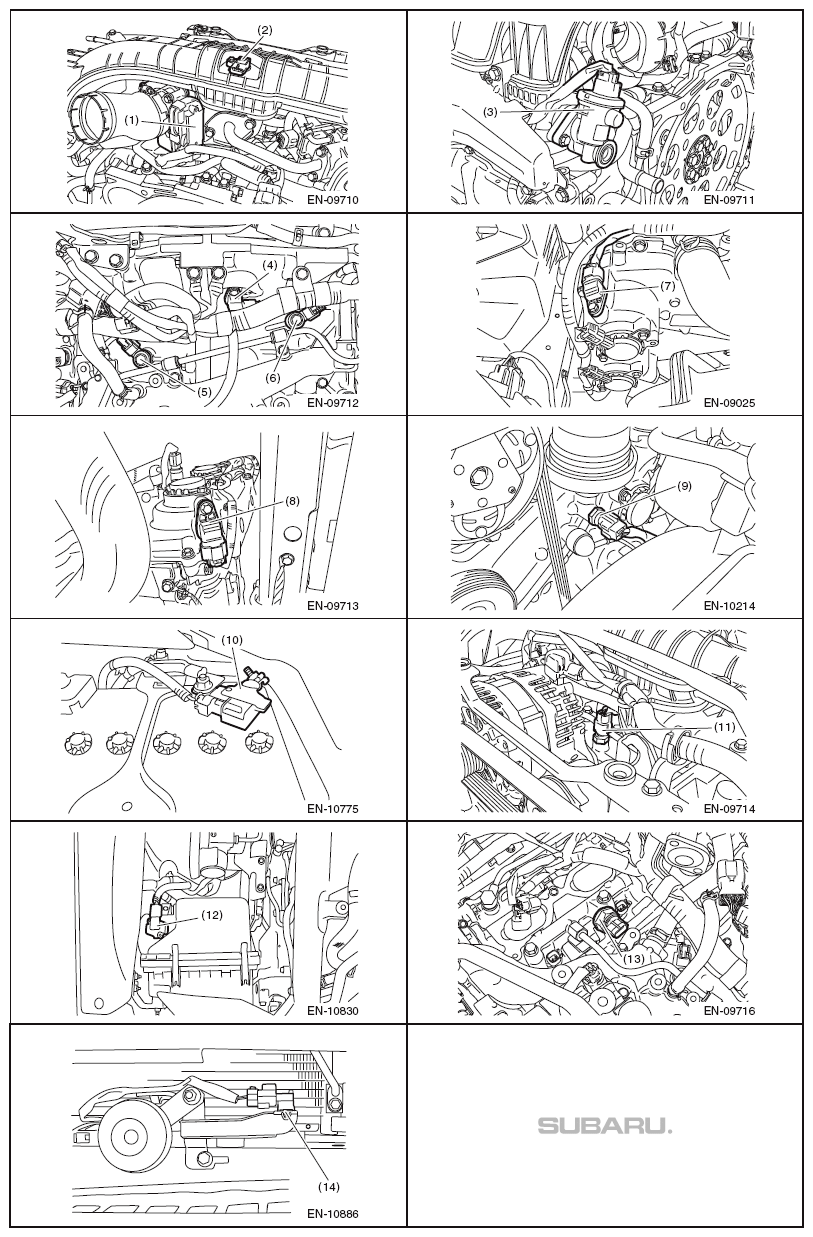

Fig 2: Engine Sensor Electrical Component Location (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

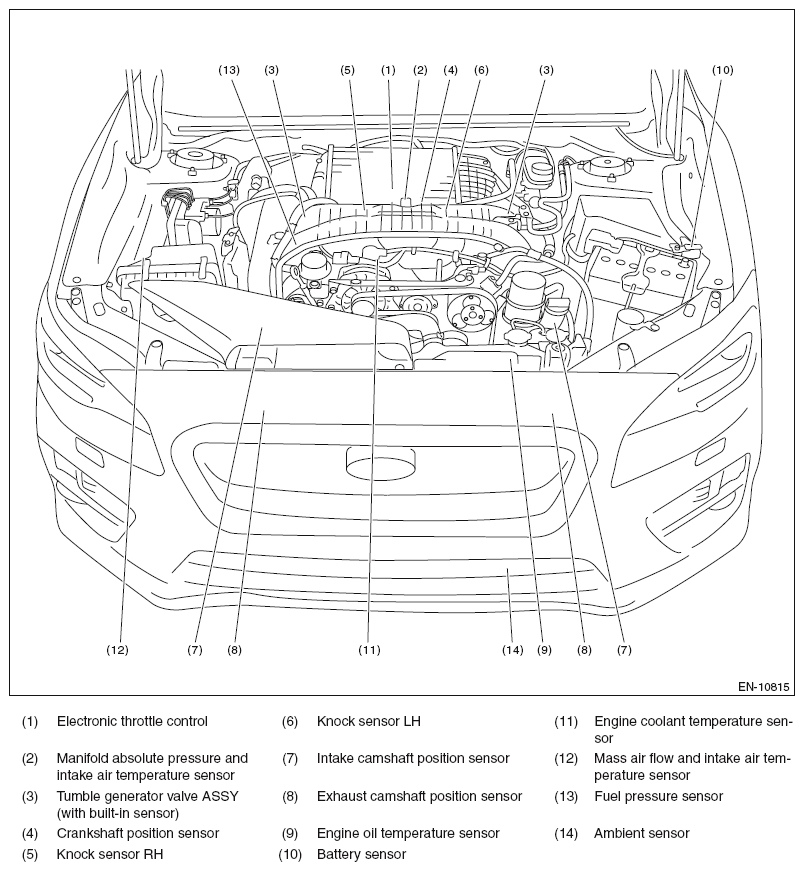

Fig 3: Engine Sensor Electrical Component Location (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

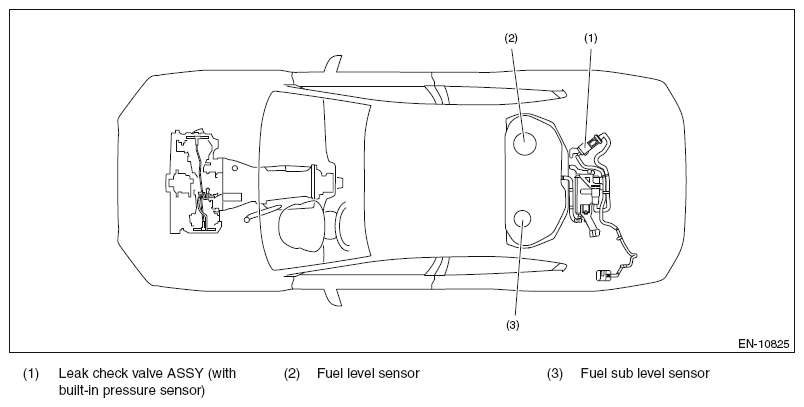

Fig 4: Engine Sensor Electrical Component Location (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

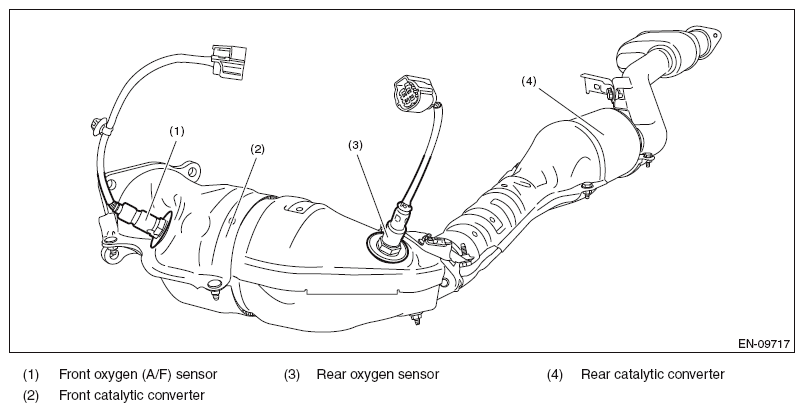

Fig 5: Engine Sensor Electrical Component Location (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
