Hose And Tank

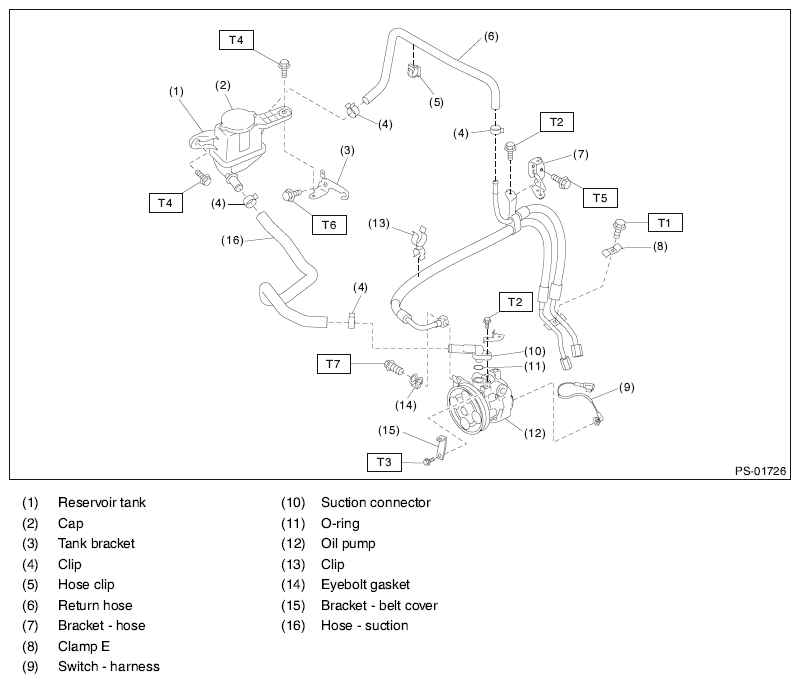

Fig 1: Exploded View Of Hose And Tank

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 10 (1.0, 7.4)

T3: 11 (1.1, 8.1)

T4: 13 (1.3, 9.6)

T5: 18 (1.8, 13.3)

T6: 33 (3.4, 24.3)

T7: 40 (4.1, 29.5)
