Unit Inspection

Check the following items, and if there is anything out of standard value, it is considered to be damaged. If so, replace it with a new part.

• Measure the whole length of the column assembly - steering.

  Standard: Overall length L

  Tilt and telescopic column (measure while minimized)

  819.7 ^+1.5 _-1.5  mm (32.27 ^+0.059 _-0.059  in)

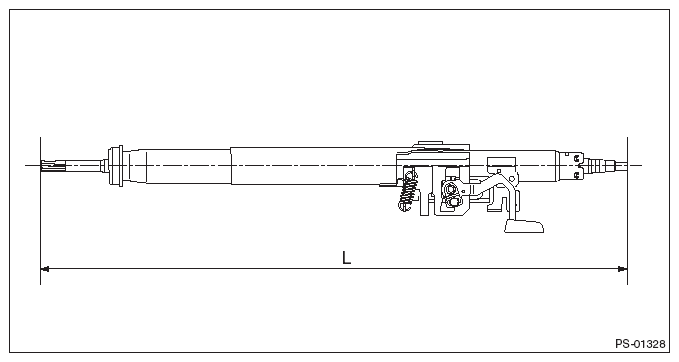

  Fig 1: Measuring Length Of Column Assembly - Steering

  Courtesy of SUBARU OF AMERICA, INC.
• Check the steering wheel deflection in axial and vertical directions.

  Specification:

  Axial deflection A (deflection of steering wheel)

  Less than 6 mm (0.24 in)

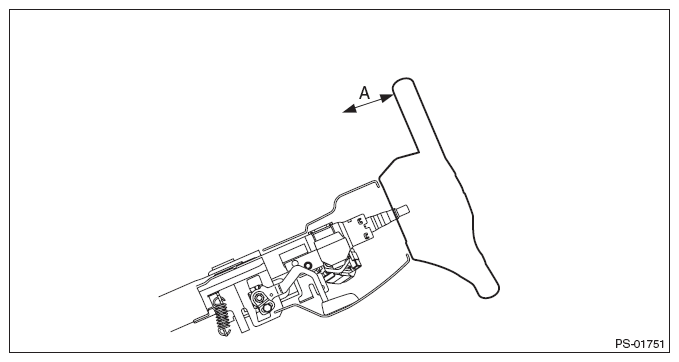

  Fig 2: Checking Steering Wheel Deflection In Axial And Vertical Directions

  Courtesy of SUBARU OF AMERICA, INC.
