Steering Gearbox: Inspection: Limit

Make a measurements as follows. If it exceeds the specified service limits, adjust or replace.

Preparation tool:

ST1: STAND (926200000)

ST2: BOSS D (34199AG000)

Rack shaft sliding resistance

Limit: 343 N (35.0 kgf, 77 lbf) or less

Left/right differential of sliding resistance: 20% or less

Rack shaft play in the radial direction

• Right-turn steering

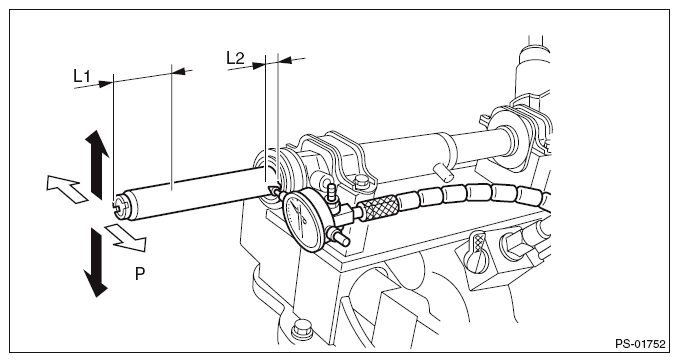

  Fig 2: Checking Rack Shaft Play In Radial Direction (Right)

  Courtesy of SUBARU OF AMERICA, INC.

Limit

Direction <==>: 0.4 mm (0.016 in) or less

Direction <==>: 0.4 mm (0.016 in) or less

Condition

Weighting point

L1: 10 mm (0.39 in)

P: 98 N (10 kgf, 22 lb)

Measuring point

L2: 5 mm (0.2 in)

• Left-turn steering
  Fig 3: Checking Rack Shaft Play In Radial Direction (Left)

  Courtesy of SUBARU OF AMERICA, INC.

Service limit:

Direction <==>: 0.4 mm (0.016 in) or less

Direction <==>: 0.6 mm (0.024 in) or less

Condition

L: 5 mm (0.20 in)

P: 98 N (10 kgf, 22 lbf)

Input shaft play

• In radial direction

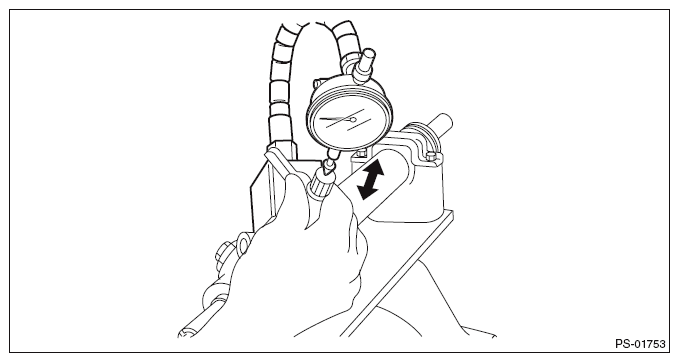

  Fig 4: Checking Input Shaft Play In Radial Direction

  Courtesy of SUBARU OF AMERICA, INC.

Limit

0.26 mm (0.0102 in) or less

Condition

P: 98 N (10 kgf, 22 lbf)

• In axial direction
  Fig 5: Checking Input Shaft Play In Axial Direction

  Courtesy of SUBARU OF AMERICA, INC.

Limit

Without play

Rotational resistance of gearbox

Using the ST, measure the gearbox turning resistance.

Preparation tool:

ST: SPANNER (34099PA100)

Service limit:

Maximum allowable resistance: 21 N (2.14 kgf, 4.7 lbf) or less

Difference between right and left rotational resistance: 20% or less
