STI Model

Press in a new pilot bearing to the position where it is flush with the flywheel surface or up to 0.4 mm deeper than that.
CAUTION: Do not press the bearing inner ring.

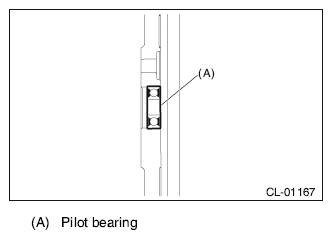

Fig 1: Identifying Pilot Bearing
Courtesy of SUBARU OF AMERICA, INC.
Install the flywheel and ST.
ST 498497100 CRANKSHAFT STOPPER

Fig 2: Installing Flywheel And ST
Courtesy of SUBARU OF AMERICA, INC.
Tighten the flywheel mounting bolts to the specified torque.
NOTE: Tighten the flywheel attachment bolts gradually. Each bolt should be tightened to the specified torque in a crisscross order.

Tightening torque:

75 N.m (7.6 kgf-m, 55.3 ft-lb)

Fig 3: Flywheel Mounting Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the clutch disc and cover. < Ref. to INSTALLATION , Clutch Disc and Cover. >
Install the transmission assembly. < Ref. to INSTALLATION , Manual Transmission Assembly. >
