Clutch Assembly

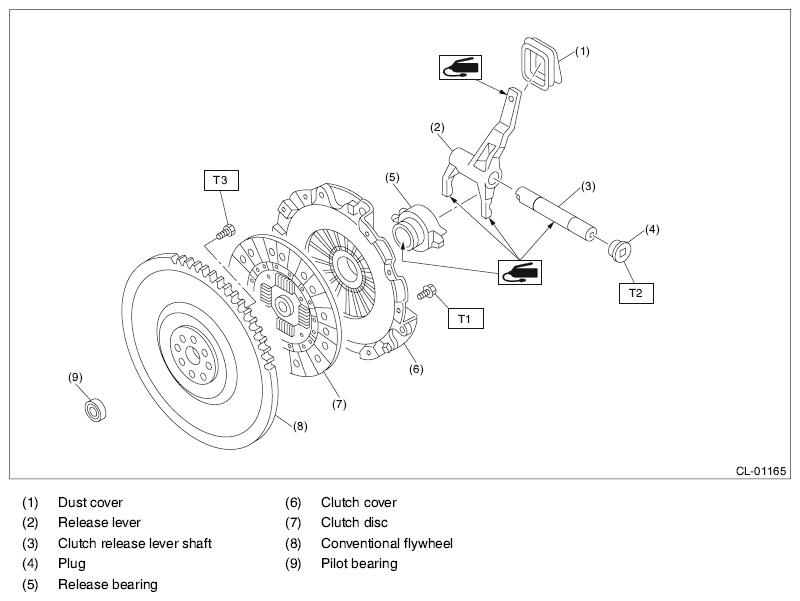

Fig 1: Exploded View Of Clutch Assembly With Torque Specification - STI Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N. (kgf-m, ft-lb)

T1: 16(1.6, 11.8)

T2: 48(4.9, 35.4)

T3: 75(7.6, 55.3)

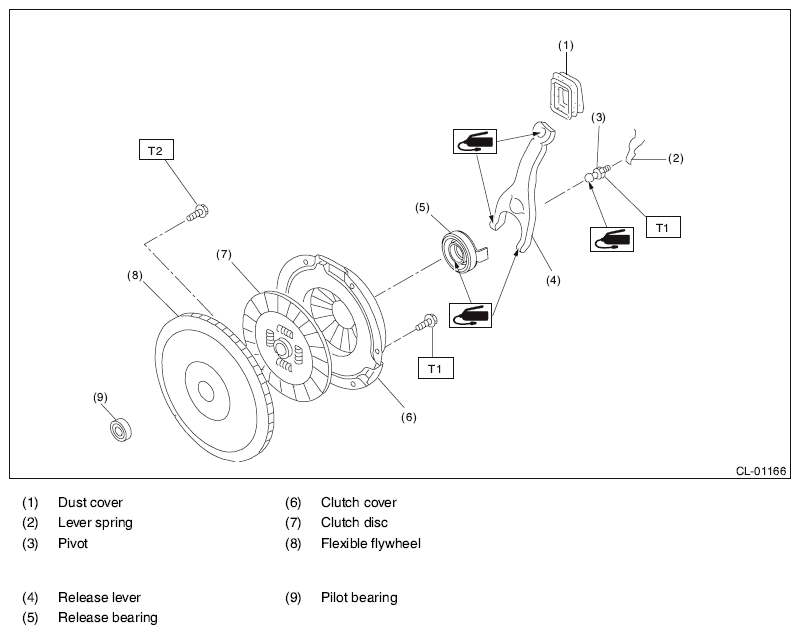

Fig 2: Exploded View Of Clutch Assembly With Torque Specification - Except For STI Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N. (kgf-m, ft-lb)

T1: 16(1.6, 11.8)

T2: < Ref. to  EXCEPT FOR STI MODEL  , INSTALLATION, Flywheel. >
