Operating Cylinder: Installation

Install in the reverse order of removal.
NOTE:
- Use a new gasket.
- Before installing the operating cylinder, apply grease to the contact point of the release lever and operating cylinder.
Grease

NICHIMOLY N-130 or equivalent
- Be sure to install the clutch hose with the mark side facing upward.
- Be careful not to twist the clutch hose during installation.
- STI model
Tightening torque:

T1: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

T2: 41 N.m (4.2 kgf-m, 30.2 ft-lb)

Fig 1: Identifying Clutch Hose Mounting Bolts - STI Model
Courtesy of SUBARU OF AMERICA, INC.

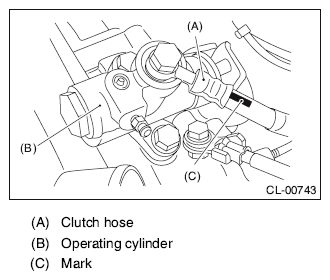

Fig 2: Identifying Mark, Clutch Hose And Operating Cylinder - STI Model
Courtesy of SUBARU OF AMERICA, INC.
- Except for STI model
Tightening torque:

T1: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

T2: 37 N.m (3.8 kgf-m, 27.3 ft-lb)

Fig 3: Identifying Clutch Hose Mounting Bolts - Except For STI Model
Courtesy of SUBARU OF AMERICA, INC.

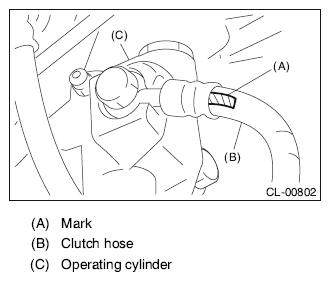

Fig 4: Identifying Mark, Clutch Hose And Operating Cylinder - Except For STI Model
Courtesy of SUBARU OF AMERICA, INC.
After bleeding air from the operating cylinder, ensure that the clutch operates properly.
< Ref. to CLUTCH FLUID AIR BLEEDING . >
