MT Gear Select Cable: Removal

CAUTION: Always use new MT gear select cable if the cable is removed from selector lever COMPL of transmission side.

Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Note. >
Remove the air intake duct. < Ref. to REMOVAL , Air Intake Duct. >
Remove the intercooler and the intercooler stay. < Ref. to REMOVAL , Intercooler. >
Disconnect the engine harness connector.

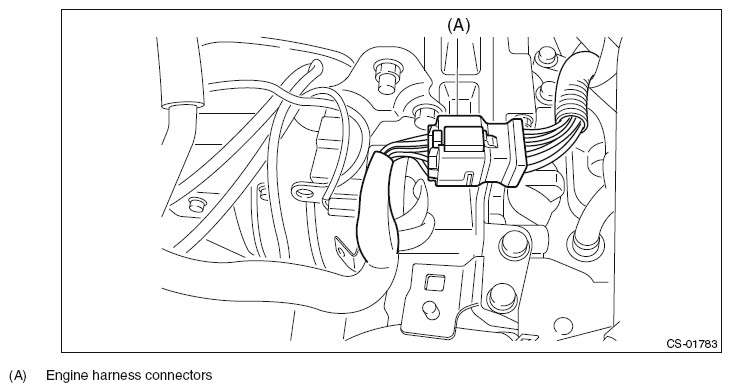

Fig 1: Identifying Engine Harness Connectors
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the transmission radio ground cord terminal.

Fig 2: Identifying Transmission Radio Ground Cord Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove the pitching stopper. < Ref. to PITCHING STOPPER , REMOVAL, Transmission Mounting System. >
Lift up the vehicle.
Remove the center exhaust pipe (rear). < Ref. to REMOVAL , Center Exhaust Pipe. >
Remove the center exhaust cover.

Fig 3: Identifying Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the propeller shaft. < Ref. to REMOVAL , Propeller Shaft. >
Remove the cable clamp.

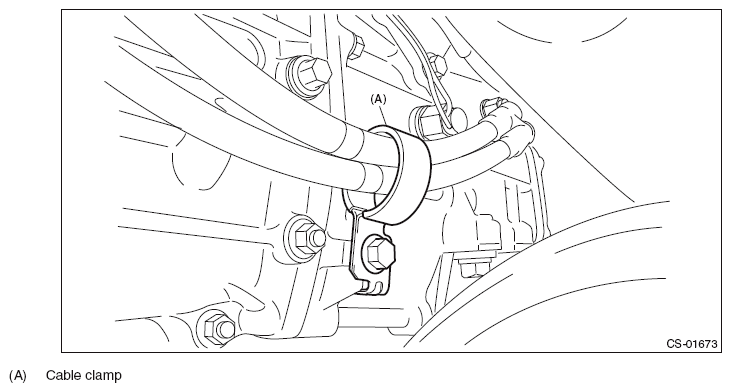

Fig 4: Identifying Cable Clamp
Courtesy of SUBARU OF AMERICA, INC.
Place the transmission jack under the transmission.
Remove the mounting bolt of front crossmember and rear crossmember, and lower the transmission approx. 100 mm (4 in).

Fig 5: Locating Mounting Bolt Of Front Crossmember And Rear Crossmember
Courtesy of SUBARU OF AMERICA, INC.
Insert a spanner between the selector lever COMPL and the MT gear select cable, and remove the MT gear select cable by raising the handle.
NOTE:
- Use a spanner with 11 to 13 in size.
- The thickness of the spanner must not exceed 6 mm (0.2 in).

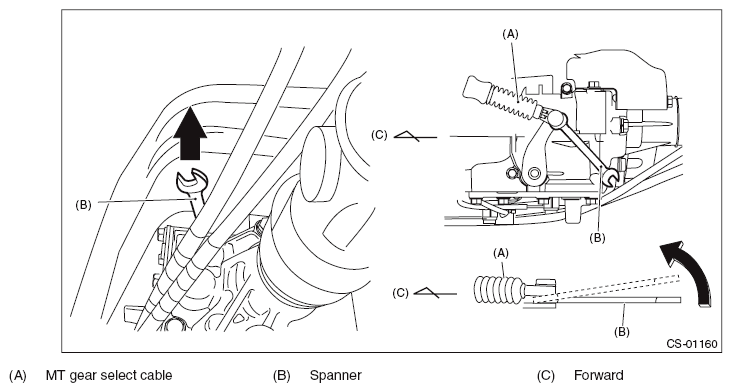

Fig 6: Inserting Spanner Between Selector Lever COMPL And MT Gear Select Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the MT gear select cable and select bracket as a single unit.

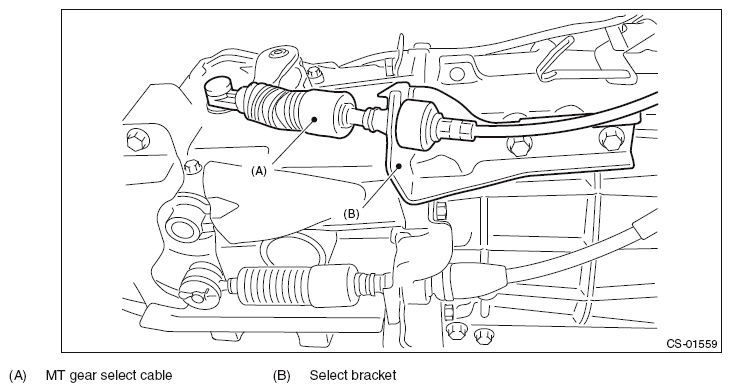

Fig 7: Identifying MT Gear Select Cable And Select Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the cable cover plate.

Fig 8: Locating Cable Cover Plate Stud Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the MT gear select cable.
CAUTION: Be careful not to deform the cable inner.

NOTE: Push the MT gear select cable in the direction of arrow, and remove it.

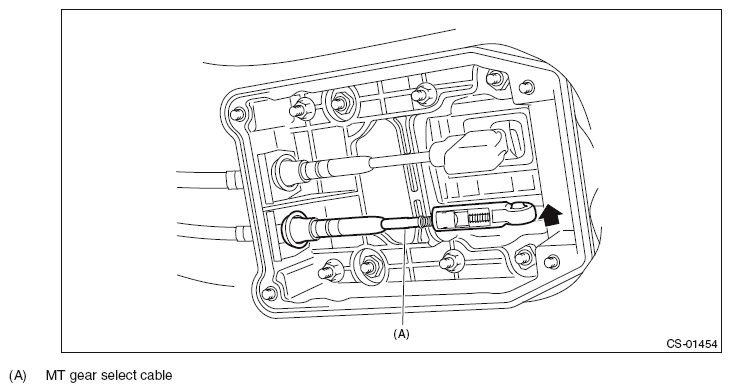

Fig 9: Disconnecting MT Gear Select Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp.

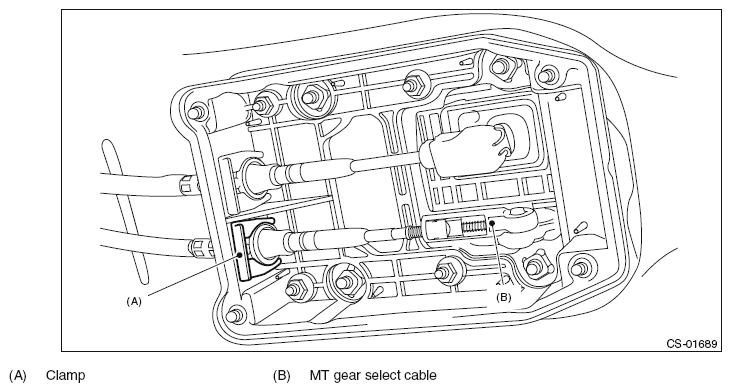

Fig 10: Identifying MT Gear Select Cable And Clamp
Courtesy of SUBARU OF AMERICA, INC.
Pull out the MT gear select cable.
CAUTION: Do not bend the MT gear select cable sharply.

Fig 11: Pulling Out MT Gear Select Cable
Courtesy of SUBARU OF AMERICA, INC.
