MT Gear Shift Lever: Assembly

NOTE:
  • Clean all the parts before assembly.
  • Apply NIGTIGHT LYW No. 2 grease or equivalent to each part. < Ref. to 6MT GEAR SHIFT LEVER (STI MODEL) , COMPONENT, General Description. >
  1. Mount the bushing and cushion rubber to the stay.

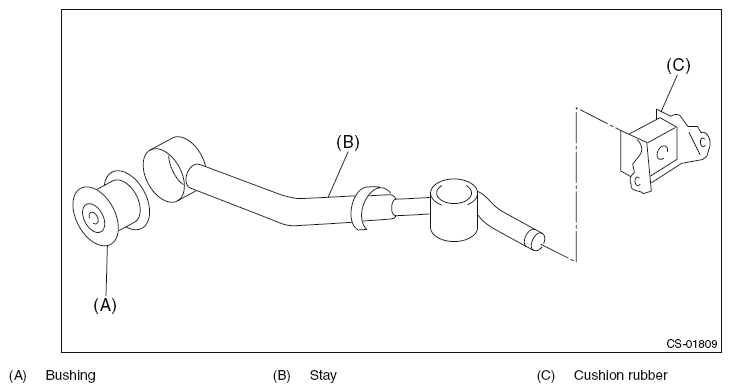

    Fig 1: Identifying Bushing, Cushion Rubber And Stay
    G10292944Courtesy of SUBARU OF AMERICA, INC.
  2. Install the bushing and spacer to boss.

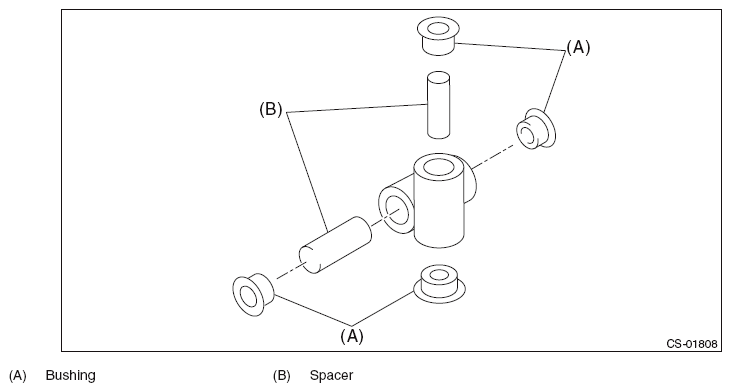

    Fig 2: Identifying Bushing And Spacer
    G10292945Courtesy of SUBARU OF AMERICA, INC.
  3. Install the snap ring and install the bushing.
    NOTE: Apply grease to the bushing.

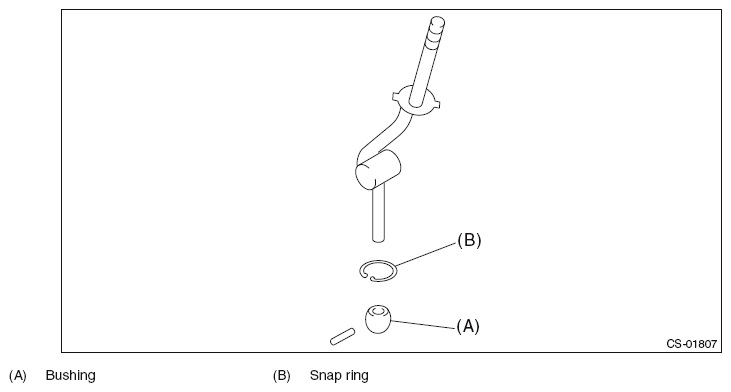

    Fig 3: Identifying Snap Ring And Bushing
    G10292946Courtesy of SUBARU OF AMERICA, INC.
  4. Apply grease to the bushing and O-ring, and then install to gear shift lever.

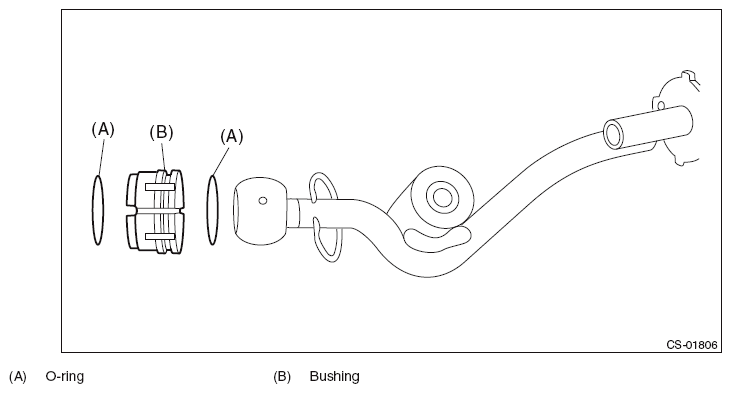

    Fig 4: Identifying Bushing And O-Rings
    G10292947Courtesy of SUBARU OF AMERICA, INC.
  5. Apply sufficient grease into boss, and then install the gear shift lever to the stay.

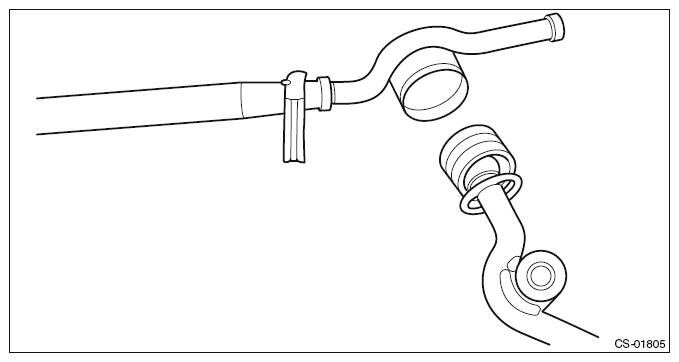

    Fig 5: Installing Gear Shift Lever To Stay
    G10292948Courtesy of SUBARU OF AMERICA, INC.
  6. Install the snap ring.

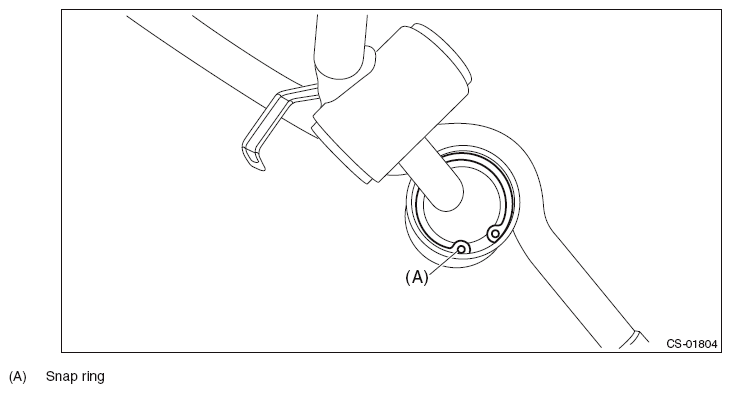

    Fig 6: Identifying Snap Ring
    G10292949Courtesy of SUBARU OF AMERICA, INC.
  7. Insert the gear shift lever and rod into boot hole.
  8. Install the rod.

    Tightening torque:

    12 N.m (1.2 kgf-m, 8.9 ft-lb)

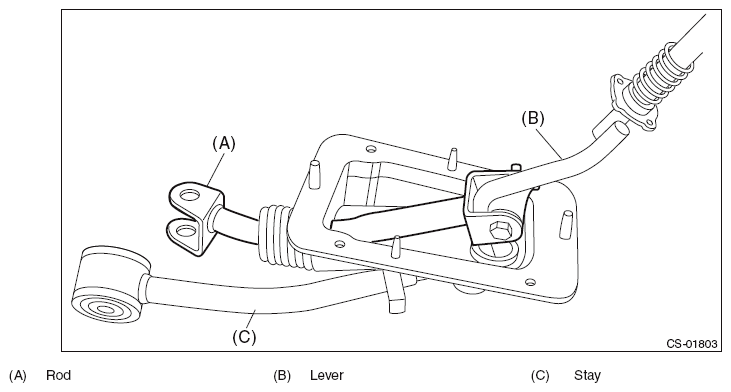

    Fig 7: Identifying Rod, Lever And Stay
    G10292950Courtesy of SUBARU OF AMERICA, INC.
  9. Install the boss to the rod.

    Tightening torque:

    12 N.m (1.2 kgf-m, 8.9 ft-lb)

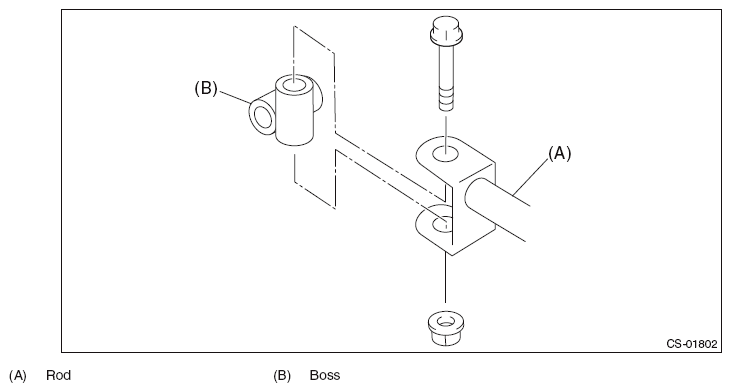

    Fig 8: Identifying Rod And Boss With Bolt
    G10292951Courtesy of SUBARU OF AMERICA, INC.
  10. Install a new lock wire.

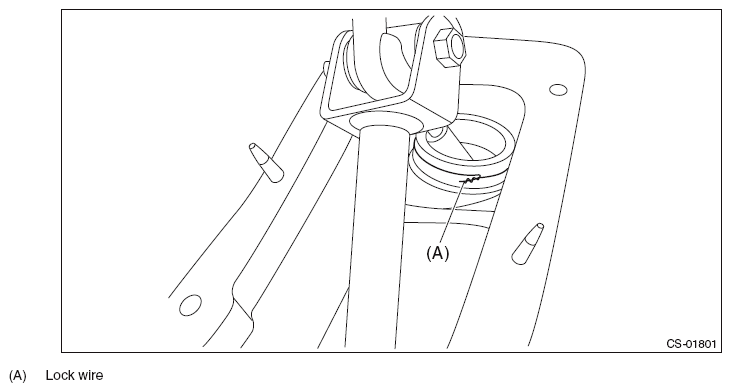

    Fig 9: Identifying Lock Wire
    G10292952Courtesy of SUBARU OF AMERICA, INC.
    NOTE:
    • Install the lock wire to the stay groove.
    • Bend the extra wire to the same direction of lock wire winding.

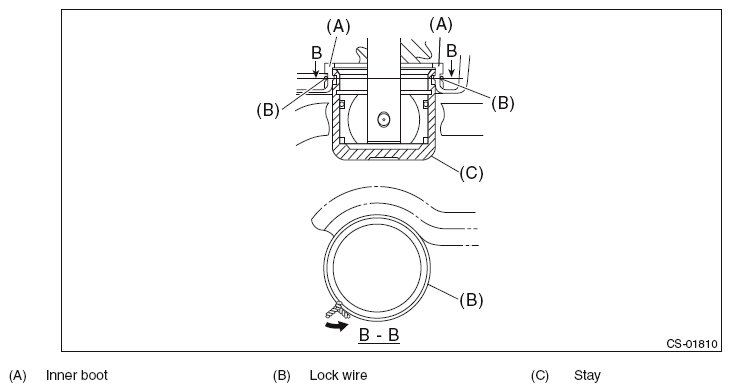

    Fig 10: Bending Extra Wire To Same Direction Of Lock Wire Winding
    G10292953Courtesy of SUBARU OF AMERICA, INC.
  11. Install the holder.

    Tightening torque:

    1.3 N.m (0.1 kgf-m, 1.0 ft-lb)

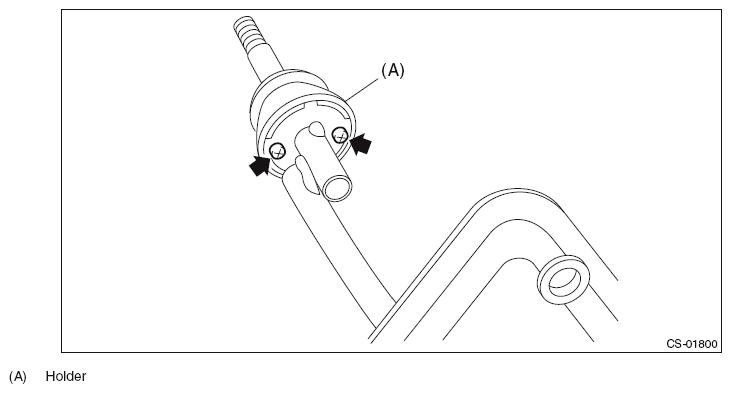

    Fig 11: Identifying Holder With Bolts
    G10292954Courtesy of SUBARU OF AMERICA, INC.
  12. Insert the reverse check cable into the boot hole.
  13. Insert the reverse check cable into the gear shift assembly, and fix in place with a band clip.
    NOTE:
    • Cut the excess band clip.
    • Make sure that the reverse check cable is inserted into the gearshift lever with no gaps.
    Fig 12: Locating Band Clip
    G10267874Courtesy of SUBARU OF AMERICA, INC.
  14. Install the seat cushion and spring.

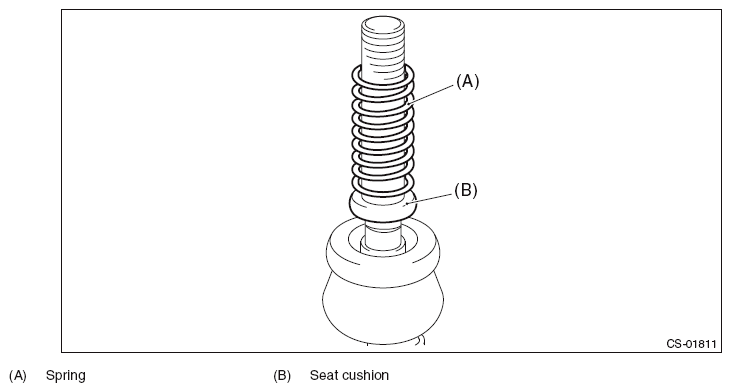

    Fig 13: Identifying Seat Cushion And Spring
    G10292956Courtesy of SUBARU OF AMERICA, INC.
  15. Use the spring pin to secure the end of the slider and reverse check cable.
    NOTE: Apply grease to the moving part of slider.

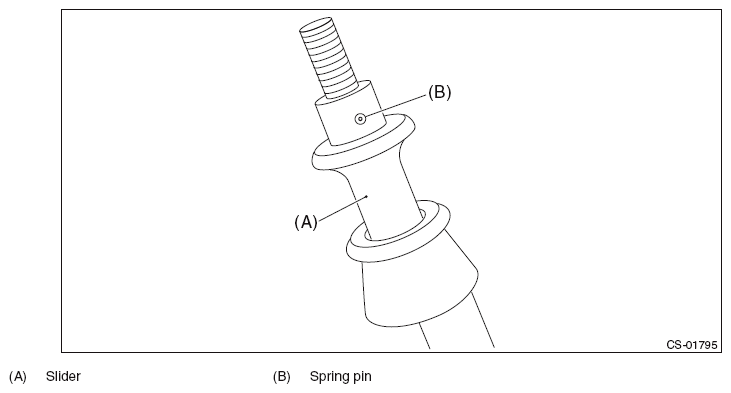

    Fig 14: Identifying Slider And Spring Pin
    G10292957Courtesy of SUBARU OF AMERICA, INC.
  16. Install the reverse check cable to the cable plate, and tighten the lock nut.

    Tightening torque:

    6 N.m (0.6 kgf-m, 4.4 ft-lb)

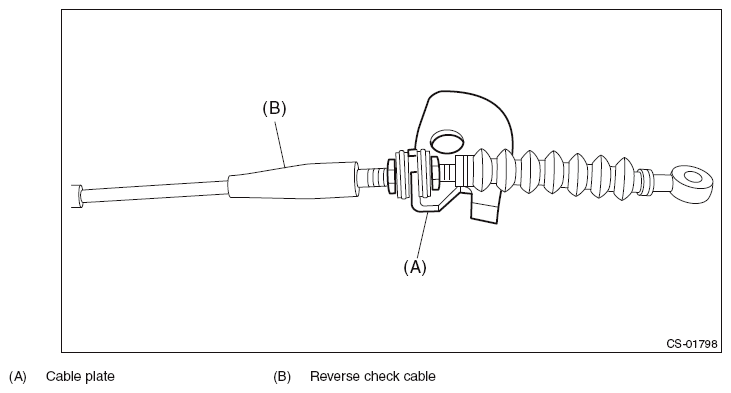

    Fig 15: Identifying Cable Plate And Reverse Check Cable
    G10292958Courtesy of SUBARU OF AMERICA, INC.
  17. Secure the reverse check cable to the stay clip.
    NOTE: Install the reverse check cable on top of the stay.

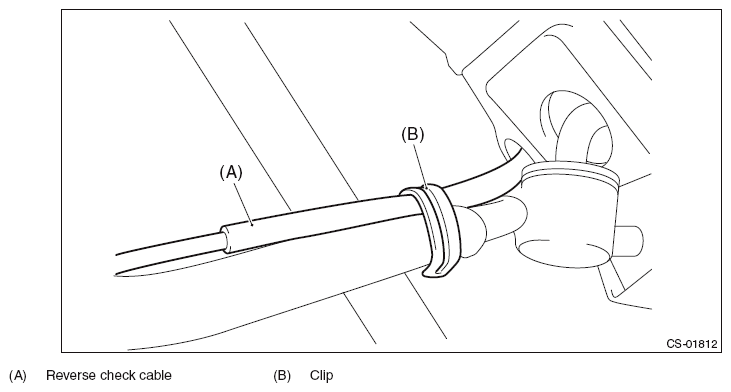

    Fig 16: Identifying Reverse Check Cable And Clip
    G10292959Courtesy of SUBARU OF AMERICA, INC.
