At Select Lever Assembly

Remove the spacer plate.

Fig 1: Identifying Spacer Plate
Courtesy of SUBARU OF AMERICA, INC.
Remove the gasket.

Fig 2: Identifying Gasket
Courtesy of SUBARU OF AMERICA, INC.
Insert a flat tip screwdriver with a thin tip under the connector and disconnect the harness connector.

Fig 3: Disconnecting Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness.

Fig 4: Identifying AT Select Lever Harness
Courtesy of SUBARU OF AMERICA, INC.
Raise the claw with a flat tip screwdriver with a thin tip and remove the solenoid unit.

Fig 5: Raising Claw With Flat Tip Screwdriver With Thin Tip
Courtesy of SUBARU OF AMERICA, INC.

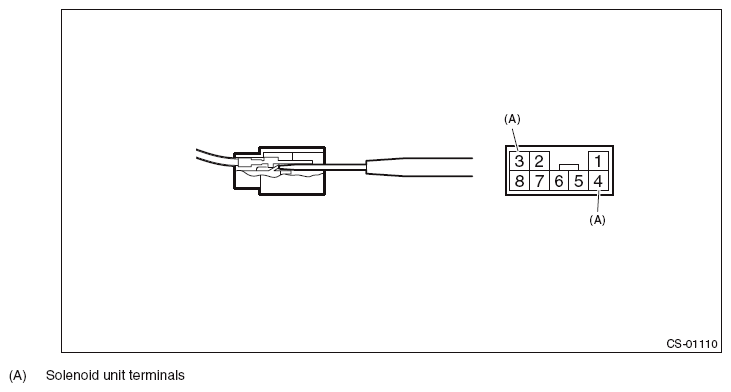

Remove the terminal of the solenoid unit using a flat tip precision screwdriver with a tip width of 1.3 mm (0.05 in) or less, KTC connector terminal tool ECC-1T or equivalent.

Fig 6: Removing Terminal Of Solenoid Unit Using Flat Tip Precision Screwdriver
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp push nut.
NOTE: Replace the clamp push nut with a new part.

Fig 7: Locating Clamp Push Nut
Courtesy of SUBARU OF AMERICA, INC.
Pull out shaft control.

Fig 8: Pulling Out Shaft Control
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp push nut.
NOTE: Replace the clamp push nut with a new part.

Fig 9: Locating Clamp Push Nut
Courtesy of SUBARU OF AMERICA, INC.
Pull out spacer pin guide.

Fig 10: Pulling Out Spacer Pin Guide
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp pin.

Fig 11: Removing Clamp Pin
Courtesy of SUBARU OF AMERICA, INC.
Remove the spacer pin guide.

Fig 12: Removing Spacer Pin Guide
Courtesy of SUBARU OF AMERICA, INC.
Remove the select lever COMPL.

Fig 13: Removing Select Lever COMPL
Courtesy of SUBARU OF AMERICA, INC.

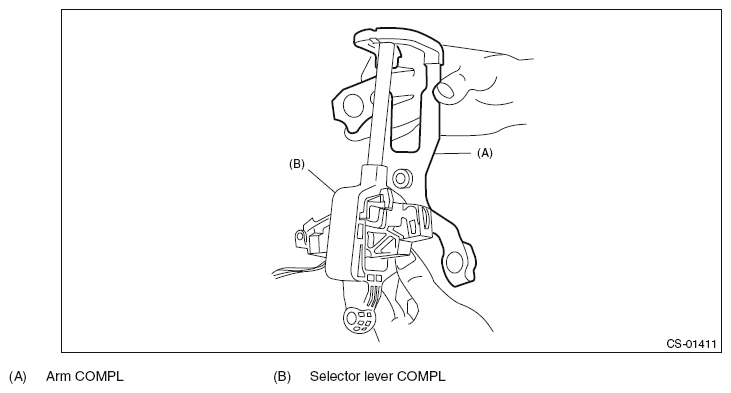

Remove the arm COMPL.

Fig 14: Removing Arm COMPL
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate guide.

Fig 15: Removing Plate Guide
Courtesy of SUBARU OF AMERICA, INC.
Remove the rod detent and the detent spring.

Fig 16: Removing Rod Detent And Detent Spring
Courtesy of SUBARU OF AMERICA, INC.
