Grip ASSY

  1. Remove the button assembly_AT.

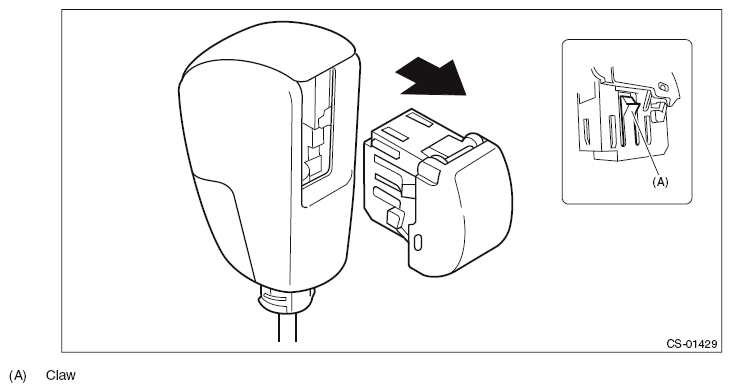

    Fig 1: Removing Button Assembly - AT
    G10292873Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the rod COMPL.
