Engine Control Module (ECM): Installation

Install in the reverse order of removal.

CAUTION: When the ECM of model with immobilizer has been replaced, be sure to perform the registration of immobilizer system. (Refer to the "REGISTRATION MANUAL FOR IMMOBILIZER".)

NOTE:

When replacing the ECM, be careful not to use the ECM of wrong specification to avoid any damage on the fuel injection system.

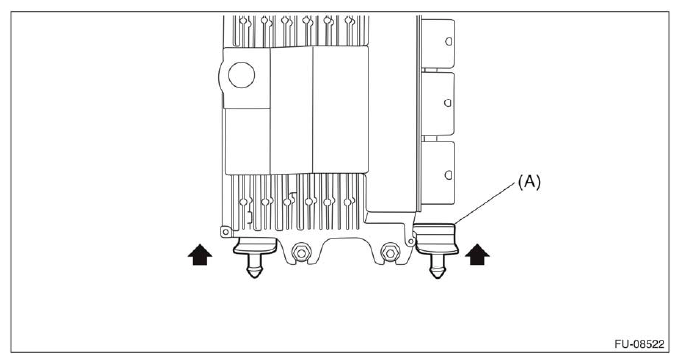

When installing the bracket (A) to the ECM, press to install it in the direction of the arrow.

Fig 1: Installing Bracket To ECM
Courtesy of SUBARU OF AMERICA, INC.
Insert the ECM into the bracket cushion.

Fig 2: Inserting ECM Into Bracket Cushion
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
