Fuses And Relays

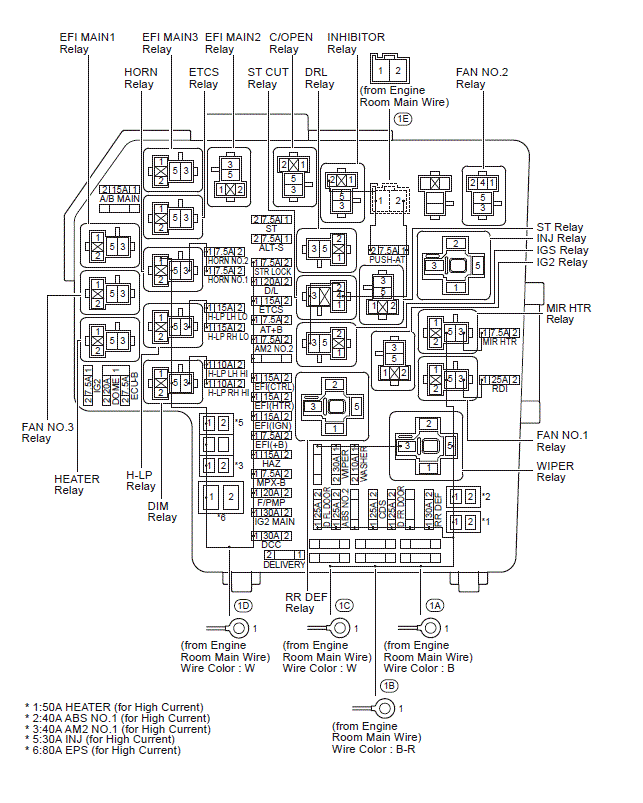

ENGINE ROOM JUNCTION BOX RELAY IDENTIFICATION
| Relay Description |
|---|
| EFI Main 1 Relay |
| Horn Relay |
| EFI Main 3 Relay |
| ETCS Relay |
| EFI Main 2 Relay |
| ST Cut Relay |
| C/Open Relay |
| DRL Relay |
| Inhibitor Relay |
| Fan No. 2 Relay |
| ST Relay |
| INJ Relay |
| IGS Relay |
| IG 2 Relay |
| Mirror Heater Relay |
| Fan No. 1 Relay |
| Wiper Relay |
| RR Defog Relay |
| DIM Relay |
| Headlamp Relay |
| Heater Relay |
| Fan No. 3 Relay |

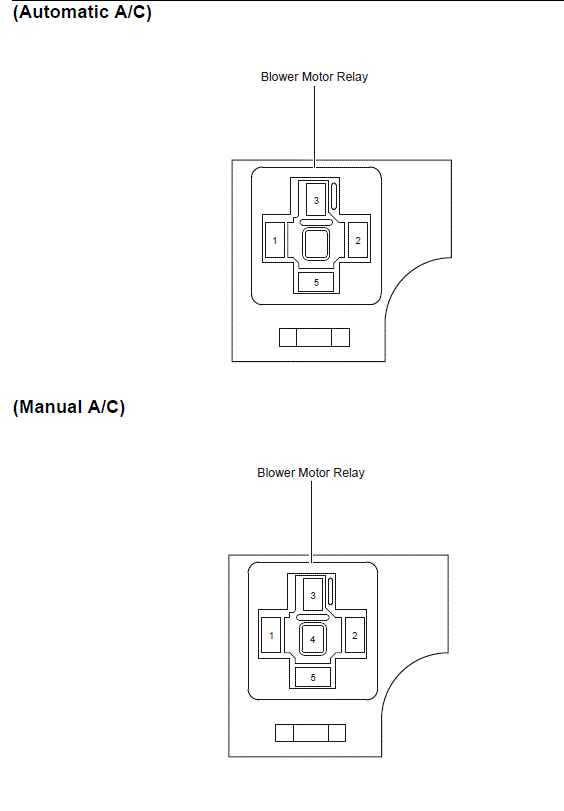

RELAY BOX NO. 2 (BEHIND GLOVE BOX) RELAY IDENTIFICATION
| Relay Description |
|---|
| Blower Motor Relay |

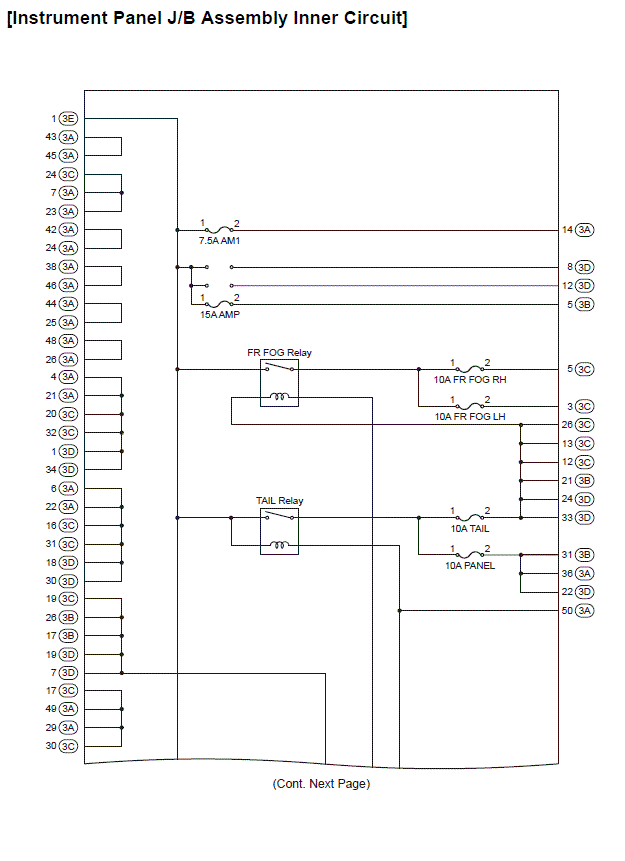

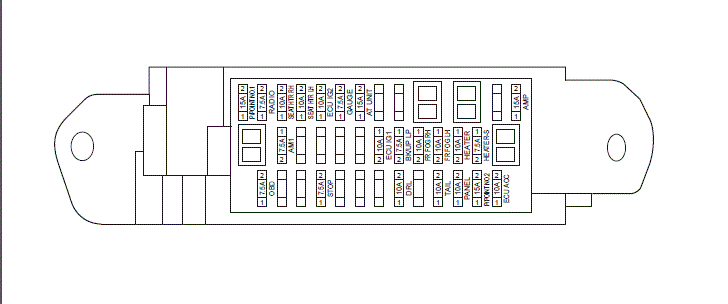

INSTRUMENT PANEL JUNCTION BOX INNER CIRCUIT RELAY IDENTIFICATION (1 OF 4)
| Relay Description |
|---|
| FR Fog Relay |
| Tail Relay |

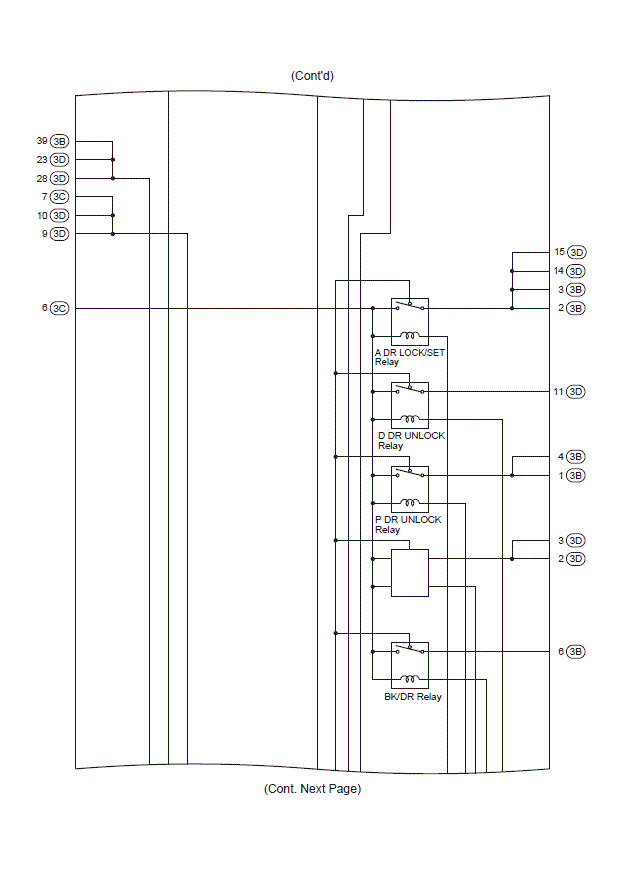

INSTRUMENT PANEL JUNCTION BOX INNER CIRCUIT RELAY IDENTIFICATION (2 OF 4)
| Relay Description |
|---|
| A DR Lock/Set Relay |
| D DR Unlock Relay |
| P DR Unlock Relay |
| BK/DR Relay |

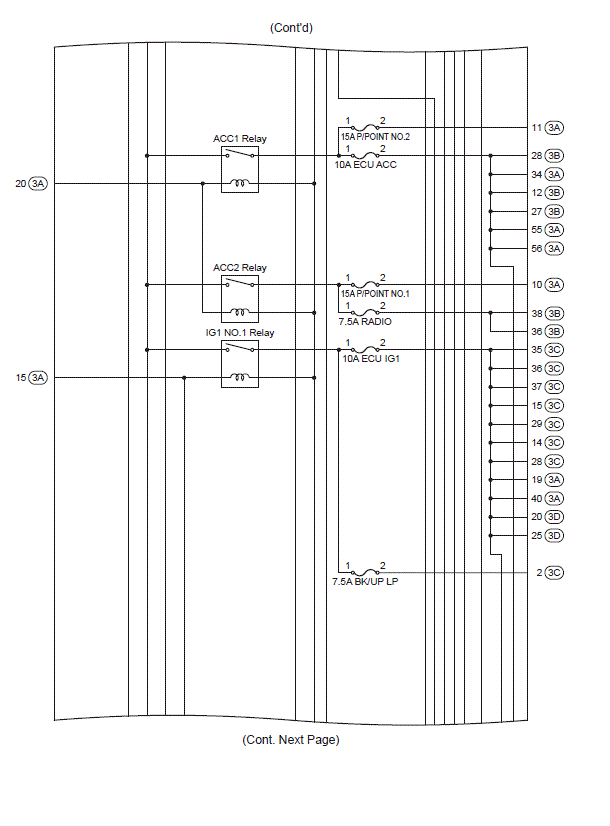

INSTRUMENT PANEL JUNCTION BOX INNER CIRCUIT RELAY IDENTIFICATION (3 OF 4)
| Relay Description |
|---|
| ACC 1 Relay |
| ACC 2 Relay |
| IG1 No. 1 Relay |

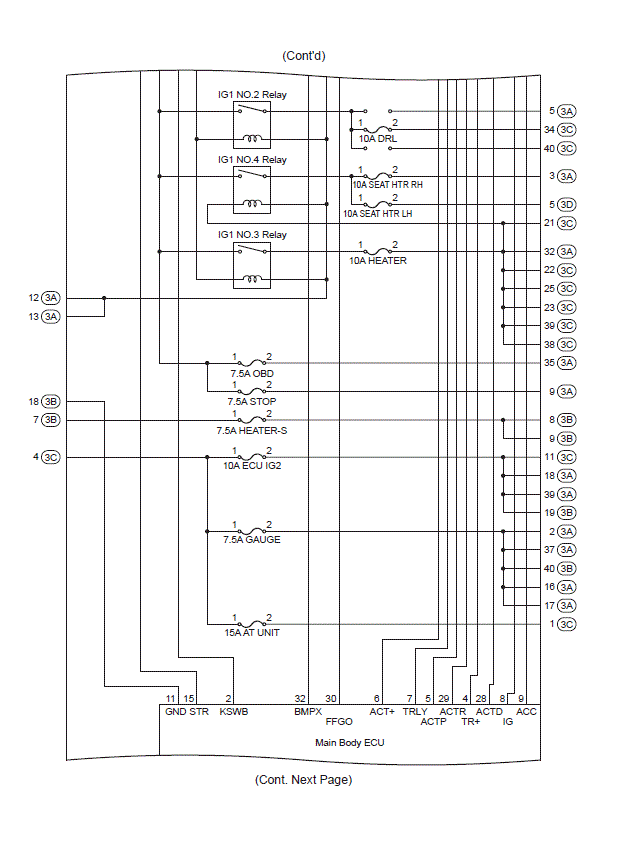

INSTRUMENT PANEL JUNCTION BOX INNER CIRCUIT RELAY IDENTIFICATION (4 OF 4)
| Relay Description |
|---|
| IG1 No. 2 Relay |
| IG1 No. 4 Relay |
| IG1 No. 3 Relay |
