Exploded view

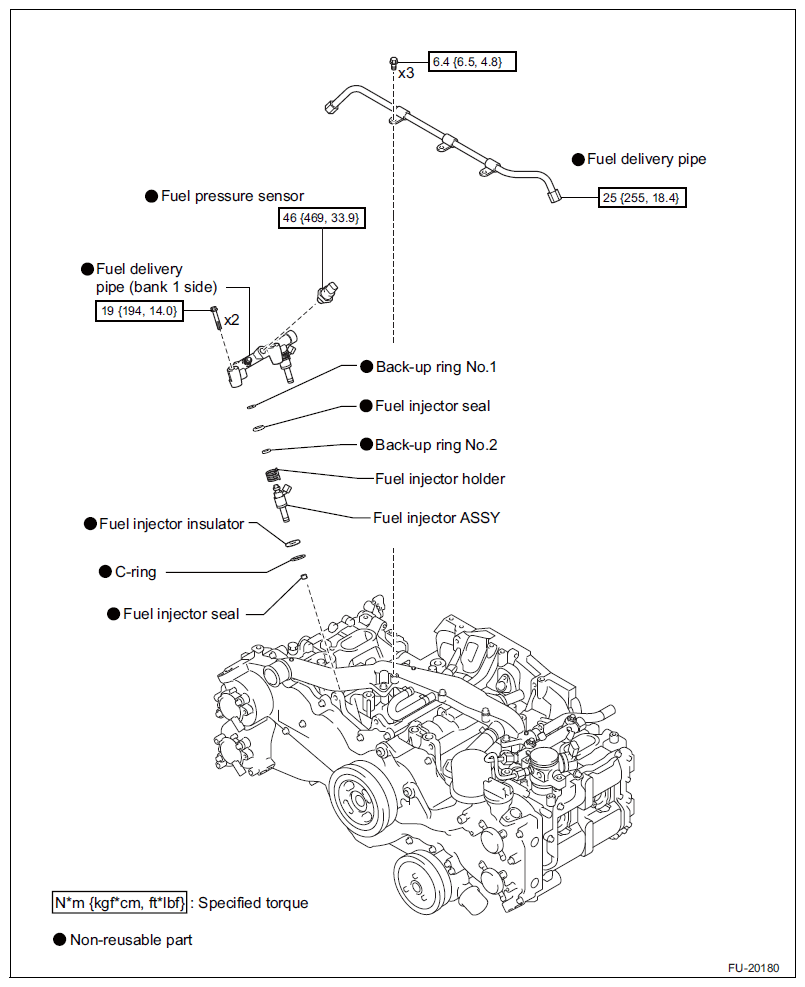

Fig 1: Exploded View Of Fuel Pressure Sensor (FA20)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
