Fuel pressure sensor (FA20): Removal

(Refer to REMOVAL )

1. Remove the 3 bolts.
2. Remove the fuel delivery pipe.

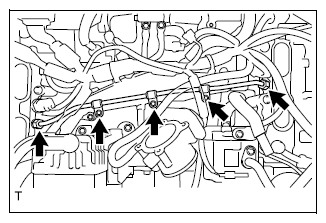

Fig 1: Locating Fuel Delivery Pipe Bolts

Courtesy of SUBARU OF AMERICA, INC.

1. Disconnect the fuel pressure sensor connector and two fuel injector connectors.

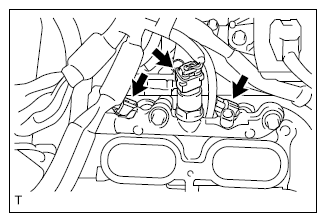

   Fig 2: Locating Fuel Pressure Sensor Connector And Fuel Injector Connectors

   Courtesy of SUBARU OF AMERICA, INC.
2. Remove the two bolts and remove fuel delivery pipe (bank 1 side).

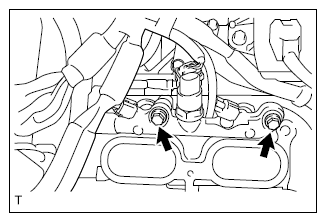

Fig 3: Locating Fuel Delivery Pipe Bolts (Bank 1 Side)

Courtesy of SUBARU OF AMERICA, INC.

1. Remove the fuel pressure sensor from the fuel delivery pipe (bank 1 side).

Fig 4: Locating Fuel Pressure Sensor Of Fuel Delivery Pipe (Bank 1 Side)

Courtesy of SUBARU OF AMERICA, INC.
