Fuel pump control computer (FA20): Removal

  1. Disconnection of the battery ground terminal (Refer to Working precautions and notes )
  2. Disconnection of front door opening trim weather strip RH (Refer to Removal )
  3. Removal of the front door scuff plate RH (Refer to Removal )
  4. Removal of separate type rear seat cushion ASSY (Refer to Removal )
  5. Removal of luggage compartment trim cover INN RH (Refer to Removal )
  6. Removal of luggage compartment trim side cover RH (Refer to Removal )
  7. Removal of fuel pump control computer ASSY
    1. Disconnect the fuel pump control computer connector.
    2. Remove the nut.
      Fig 1: Locating Fuel Pump Control Computer Connector And Nut
      G11258839Courtesy of SUBARU OF AMERICA, INC.
    3. Push in the stud bolt of fuel pump control computer ASSY.

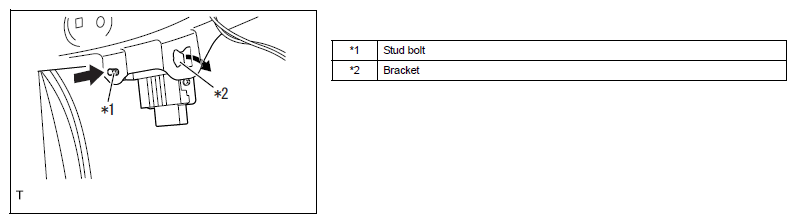

      Fig 2: Pushing Stud Bolt Of Fuel Pump Control Computer Assembly
      G11258840Courtesy of SUBARU OF AMERICA, INC.
    4. Slide the fuel pump control computer ASSY toward the rear of the vehicle to disengage the bracket and remove the fuel pump control computer ASSY.
      CAUTION: If impact is applied to the fuel pump control computer ASSY, do not reuse it.
